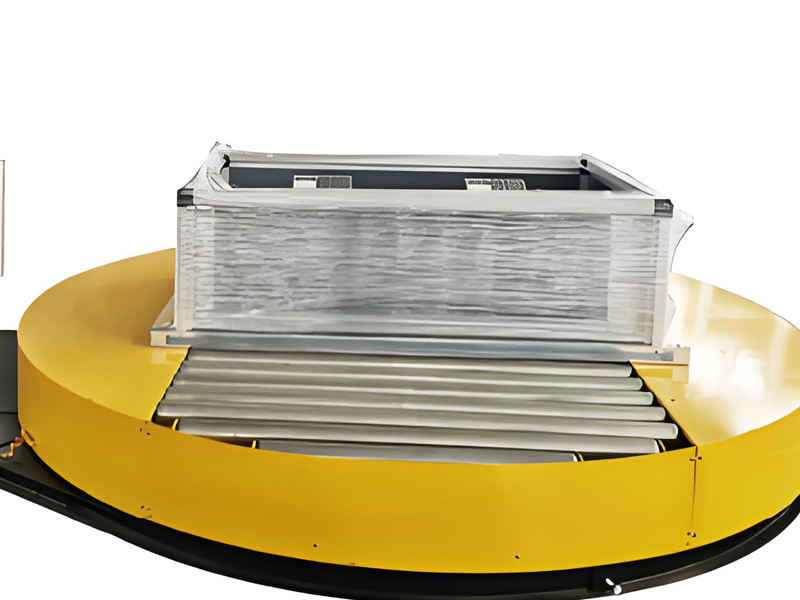

Automatic Stretch Pallet Wrapper Integrates a high-precision PLC control system and advanced pre-stretch technology, suitable for wrapping and packaging various palletized goods in logistics, warehousing, and manufacturing industries. It effectively enhances the stability and protection of goods during transportation and storage, significantly reducing damage rates.
Stretch Wrap Machine Specifications
Wrapping Specifications: Length 500–1200 mm, Width 500–1200 mm.
Maximum Packaging Height: L-type 1600 mm, H-type 2400 mm.
Packaging Efficiency: 30–50 pallets per hour.
Turntable System: Diameter 2000 mm, rotation speed 6–12 rpm variable frequency adjustable, supports smooth start and stop.
Film Carriage System: Cargo Wrapping Machine is equipped with a pre-stretch film carriage, stretch rate up to 250%, enabling automatic film feeding and variable frequency speed control.
Lifting System: Adopts dual-chain structure, lifting speed variable frequency adjustable.
Control System: Based on PLC control, programmable settings for wrapping layers, cycles, and turntable position, with automatic cargo height sensing and reset function.
Automatic Film Loading/Cutting: Pneumatic control, supports automatic film loading, cutting, and smoothing.
Pneumatic System Working Pressure: 0.4–0.8 MPa.
Packaging Material: Compatible with LLDPE stretch film, recommended thickness 17–35 microns, width 500 mm.
Power and Voltage: Turntable motor 0.75 kW, film carriage motor 0.25 kW, lifting motor 0.37 kW, machine operates on 220V AC.
End of Line Pallet Wrapper Advantages:
High Automation and Intelligence: The entire process, from automatic cargo dimension sensing to film loading, wrapping, cutting, and smoothing, requires no manual intervention. The PLC control system, paired with a user-friendly touch interface, makes operation extremely simple, with one-touch parameter setting and mode switching.
Outstanding Packaging Efficiency and Economy: Packaging speed of up to 50 pallets per hour meets high-efficiency production line demands. A 250% pre-stretch rate significantly reduces film consumption, lowering packaging costs. Variable frequency speed control technology enables energy-efficient operation.
Stable and Reliable Operation: The dual-chain lifting mechanism ensures smooth operation and precise positioning. In-line Stretch Wrapper features a heavy-duty steel frame design, with key components such as the turntable and film carriage made from durable materials and protective designs, ensuring long-term stability during continuous high-intensity operations.
Flexibility and Safety: Smooth start-stop function prevents cargo tipping. Automatic Stretch Pallet Wrapping Machine is equipped with fault self-diagnosis and alarm functions, with multiple safety protections in both the pneumatic and electrical systems, ensuring operator and equipment safety.
