Product Description

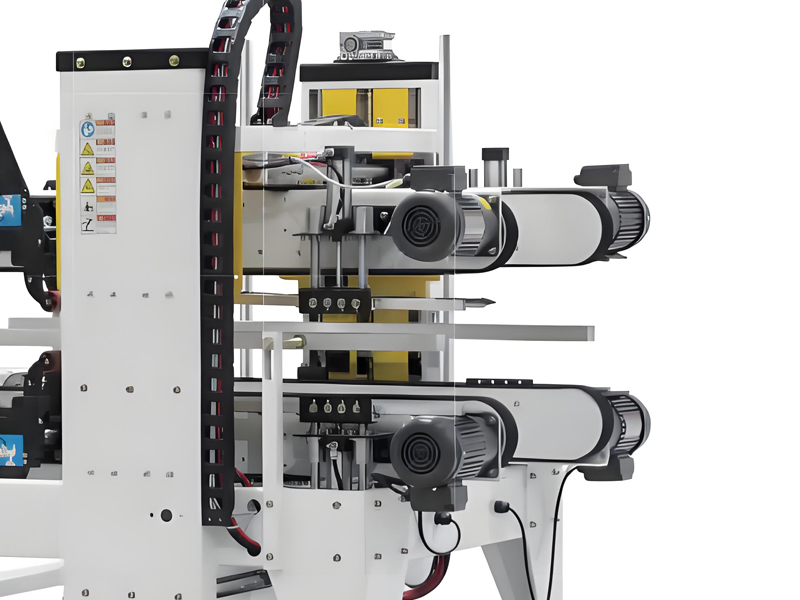

The Automatic Corner Sealing Machine uses kraft paper tape or BOPP tape to achieve secure bonding of the top and bottom flaps and four corners of the carton, enhancing overall strength and aesthetics. Featuring a stable structure and easy adjustment, the Case Sealer is suitable for sealing operations of large-sized boxes in furniture, appliances, industrial parts, automotive components, and other fields. It is widely used in standardized packaging processes across manufacturing, logistics, and e-commerce industries.
Technical Parameters of Automatic Case Sealing Machine
Power Supply: AC220V, 50Hz, 1.0kW
Air Pressure: 0.6–0.8 MPa
Sealing Method: Kraft paper tape / BOPP tape
Tape Width: 48–72 mm
Applicable Carton Specifications:
Length L: 340–670 mm
Width W: 200–480 mm
Height H: 200–500 mm
Conveyor Speed: 20 m/min
Worktable Height: 600–750 mm (customizable)
External Dimensions: 2200 × 1240 × H (overall height ≈ worktable height + 800 mm, subject to actual structure confirmation)
Features of End Of Line Case Sealer
Dual-Tape Compatible Sealing
Supports kraft paper tape and BOPP tape, meeting different packaging strength and appearance requirements.
Corner Sealing for Enhanced Structure
The Automatic Box Sealing Machine improves carton compression resistance and stacking stability.
Wide Dimensional Adaptability
Broad adjustment range for carton dimensions, suitable for various common box types in industrial and e-commerce applications.
Customizable Ergonomic Height
Worktable height adjustable within 600–750 mm range. The Custom Case Sealer adapts to different production lines and operator habits.
Smooth and Efficient Conveying
Conveyor speed up to 20 m/min, ensuring stable operation and compatibility with medium-to-high-speed packaging rhythms.
Compact and Sturdy Structure
The EOL Carton Sealer features excellent rigidity, reasonable footprint, and is suitable for integration into workshop production lines.
