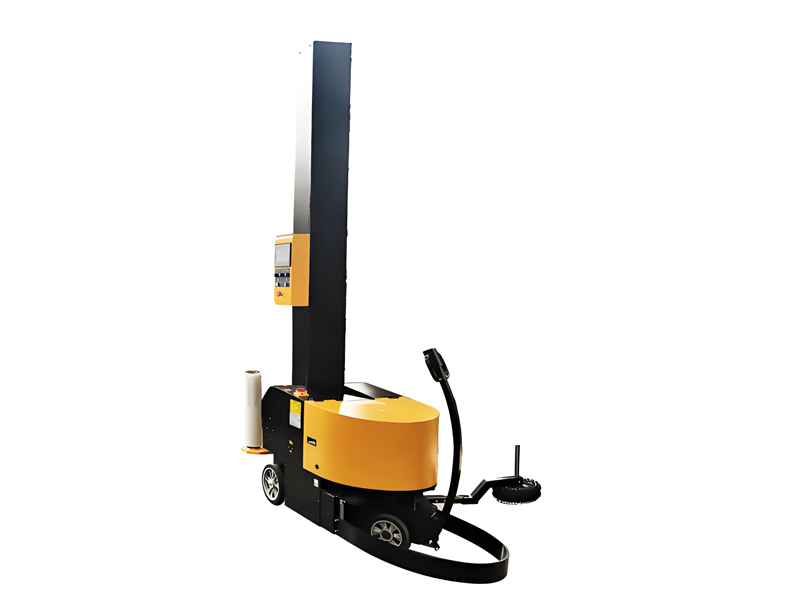

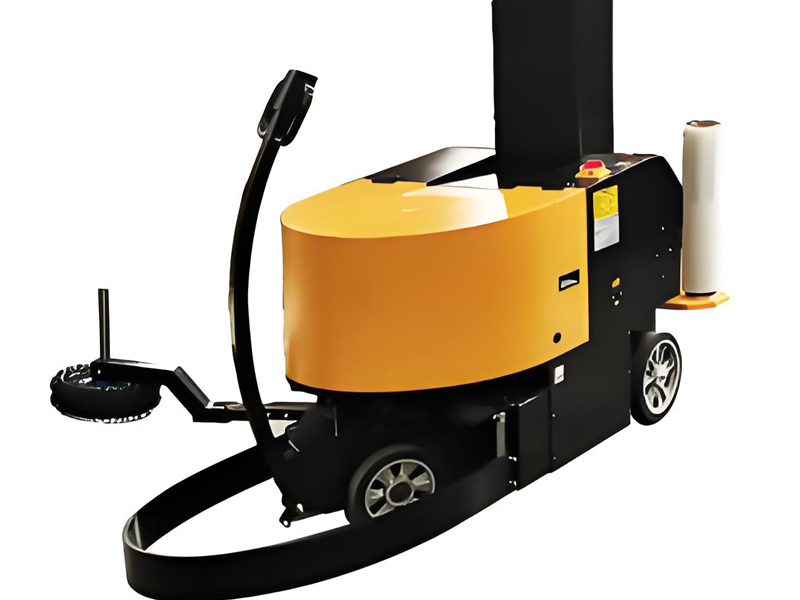

Self-Propelled Winding Packaging Machine Adopts battery-powered, self-propelled intelligent winding packaging equipment. The Stretch Wrap Machine requires no fixed installation or external power supply and can flexibly move to the cargo location through an efficient walking system and multi-motor coordinated control to automatically complete film winding packaging for palletized goods. Pallet Wrapper is suitable for warehousing, logistics, and production scenarios such as areas without fixed power sources, scattered cargo locations, Pallet Wrapping Machine or locations requiring frequent changes in work areas.
Specifications
Power Supply: Compatible with two 100Ah (12V) high-performance battery packs
Charging Time: Full charge in approximately 8–10 hours
Operating Duration: Cargo Wrapping Machine Supports up to 8 hours of continuous operation
EOL Stretch Wrapping Machin Drive System
Travel Drive: 0.55 kW DC motor with electronic speed controller (0–62 m/min stepless speed adjustment)
Lift Drive: 0.18 kW DC motor with speed controller for smooth film‑carriage lifting
Pre‑stretch Drive: 0.35 kW DC motor with speed controller, providing 250%–300% film pre‑stretch
Dimensions
Minimum Base: 600 mm × 600 mm
Maximum Height: 1800 mm
In-line Pallet Wrapper Travel Speed
Maximum Speed: 62 m/min for rapid positioning in the work area
Film Compatibility
Maximum Roll Diameter: 250 mm
Inner Core Diameter: 75 mm
Roll Height: 500 mm
