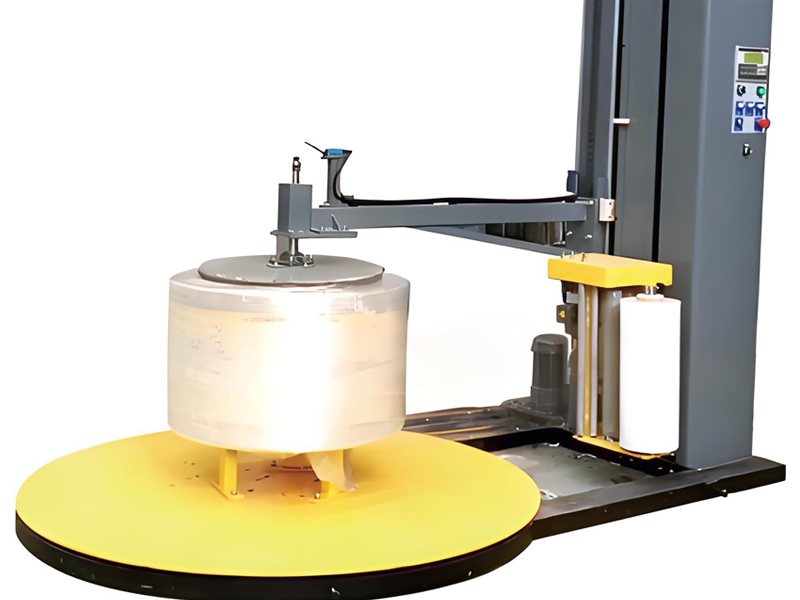

Top Type Winding Packaging Machine

Get Latest Price

Contact Now

Product Description

Top Type Winding Packaging Machine Effectively prevents goods from shifting, tilting, or collapsing during high-speed rotation and wrapping, ensuring safe and stable packaging. The Stretch Wrap Machine is suitable for industries such as chemicals, building materials, metal products, and large components.

Pallet Wrapping Machine Packaging Specifications

Wrapping Range

Length: 500–1200 mm

Width: 500–1200 mm

Packaging Height Options

L-type: Maximum height 2000 mm, suitable for standard industrial goods

H-type: Maximum height 2400 mm, accommodates most cargo height requirements

Efficiency

20–40 pallets per hour

Turntable Specifications

Diameter: 1650 mm

Design: Low-profile (85 mm height), optimized for forklift accessibility

Load Capacity: Up to 2000 kg, engineered for heavy-duty applications

Drive System: 6–14 rpm variable speed, equipped with soft-start and soft-stop functionality for smooth heavy-load operation and precise positioning

Cargo Wrapping Machine Advantages

Function: Adopts a pneumatic top-pressing mechanism (motor and chain-driven), which automatically descends and gently presses the top of the goods before wrapping.

Effect: Effectively prevents lightweight, excessively tall, or unstable goods from shifting, tilting, or collapsing during rotation, significantly improving packaging safety and finished product stability.

Intelligent Sensing: The system automatically detects cargo height to achieve precise control of the top-pressing position.

Efficient Film Carriage System

Standard: Pre-stretching film carriage with a stretch rate of up to 250%, ensuring wrapping strength while saving over 60% of film usage.

Optional: Non-stretching film carriage, providing users with more material choices to adapt to different packaging strength and cost control requirements.

Control: Semi-Automatic Stretch Wrap Machine supports automatic film feeding and variable frequency speed control, with film tension intelligently adjustable based on cargo characteristics.

Stable Lifting and Intelligent Control

Lifting Column: Fully automatic stretch film Pallet Wrapper adopts a dual-chain transmission structure, ensuring smooth and reliable operation; lifting speed is variable frequency adjustable, achieving uniform and tight wrapping from the bottom to the top of the goods.

Control System: End of Line In-line Pallet Wrapper Core uses a PLC programmable controller with the following intelligent functions:

Pre-set and adjustable wrapping layers and packaging cycles.

Automatic Height Detection: Automatically senses cargo height and optimizes the packaging program.

Automatic Reset: After packaging is completed, the turntable and film carriage automatically reset to the standby position.

End of Line Pallet Wrapper Specifications

Packaging Material

Compatible film: LLDPE stretch film

Thickness: 17–35 microns

Width: 500 mm

High material compatibility

Physical Parameters

Weight: approx. 700 kg (robust construction)
