Product Description

Automatic Pre-stretching Pallet Wrapper

Utilizes pre-stretching technology and an automated control system to enable fast and tight film wrapping for various goods stacked on standard pallets, significantly improving cargo transport stability and effectively reducing the risk of damage during logistics. It is widely applicable in industries such as glass products, hardware tools, electronics and electrical appliances, papermaking, ceramics, chemicals, food and beverages, and building materials.

Stretch Wrap Machine Specifications

Dimensions: Length: 500-1200 mm / Width: 500-1200 mm

Height Options: L-type (2000 mm), H-type (2400 mm), Y-type (2800 mm) — selectable according to cargo height

Processing Capacity: 20–40 pallets per hour

Automatic Pre-stretching Wrapping Machine

End of Line Pallet Wrapper Functional Configuration

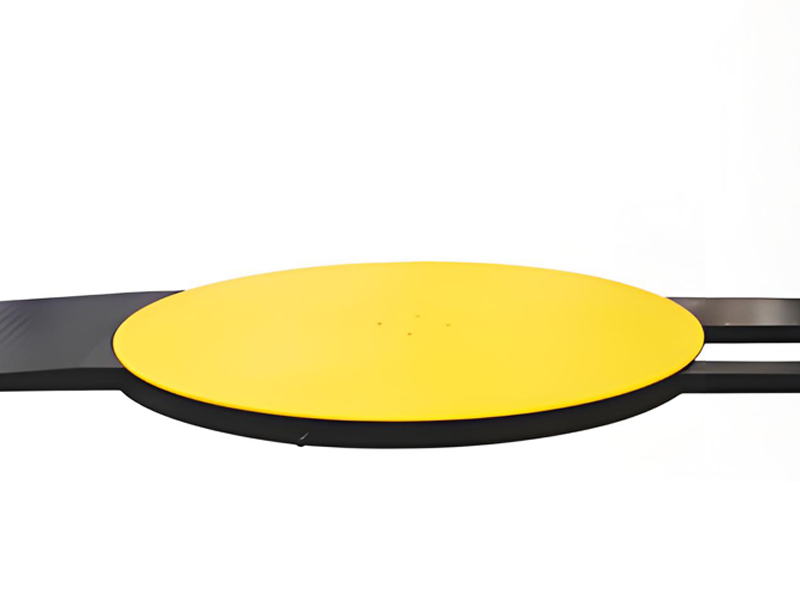

Turntable System:

Turntable Diameter: 1650 mm, ensuring stable pallet rotation.

Turntable Height: 85 mm low-profile design, facilitating forklift loading and unloading.

Maximum Load Capacity: Up to 2000 kg, capable of handling most industrial goods.

Operation Control: Rotation speed 6–14 rpm, variable frequency adjustable, featuring smooth start and stop functions to prevent cargo inertia tipping.

Film Carriage System:

EOL Stretch Wrapping Machine adopts a pre-stretching film carriage, with film stretch rate up to 250%, maximizing packaging material cost savings while ensuring wrapping strength.

Supports automatic film feeding and variable frequency speed control, with film tension automatically adjustable based on cargo characteristics.

Lifting System:

Structure: Sturdy dual-chain transmission structure.

Control: Lifting speed variable frequency adjustable, capable of precisely matching the packaging height of different goods to achieve uniform wrapping from bottom to top.

Intelligent Control System:

Core: PLC (Programmable Logic Controller) for stable and reliable operation.

Functions: Pre-set wrapping layers and packaging cycles; automatic cargo height sensing and packaging path adjustment; automatic turntable reset after packaging completion.

Packaging Material: Optimized for compatibility with LLDPE stretch film, recommended film roll thickness 17–35 μm and width 500 mm, offering strong versatility and convenient procurement.

Conveyor Pallet Wrapper Specifications

Dimensions: Length 2545 mm × Width 1650 mm × Height 2310–3110 mm (adjustable)

Weight: Maximum weight approx. 700 kg, compact design with small footprint

Power: Total power 1.5 kW, operating voltage 220V AC, low energy consumption

Intelligent Cargo Wrapping Machine Advantages

Strong Size and Load Adaptability: Covers cargo height range from 2000 mm to 2800 mm and maximum load capacity of 2000 kg, capable of handling the majority of palletized goods in warehousing and logistics.

Exceptional Packaging Economy: The 250% pre-stretching technology is a core highlight, significantly reducing film consumption (up to over 60% savings), directly lowering long-term packaging costs.

High Automation and Intelligence: Fully Automatic Pallet Wrapping Machine requires no manual intervention throughout the entire process—from automatic height sensing and parameter setting to packaging completion and reset. PLC control ensures packaging consistency and reliability, reducing the skill requirements for operators.

Stable Operation and Safety Reliability: Dual-chain lifting and heavy-duty turntable design ensure equipment stability during continuous operation. Smooth start-stop functions and safety protection designs ensure cargo and operator safety.

Broad Industry Applicability: Pre-stretch Film Wrapping Machine’s protective features (dustproof, moisture-proof, fixation) and efficient packaging mode perfectly meet the multi-industry packaging needs, from light industrial products to heavy industrial goods.
