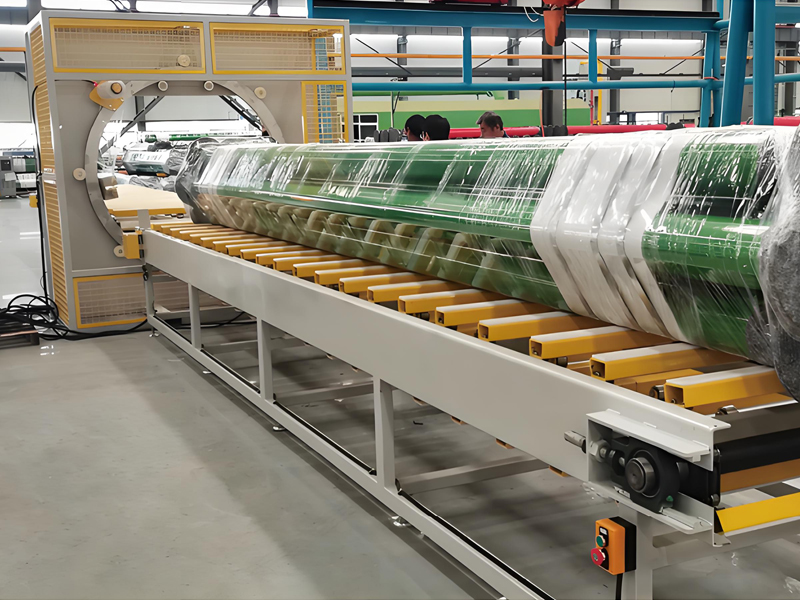

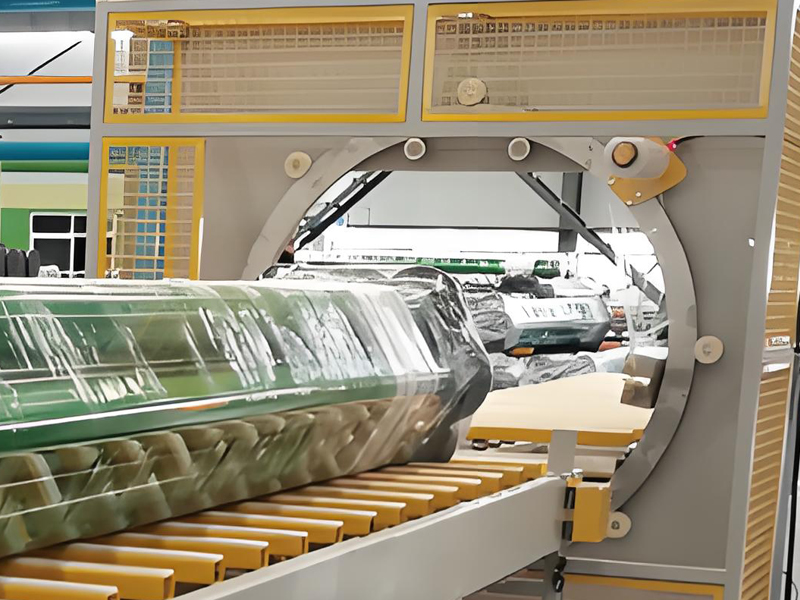

Horizontal Pallet Wrapping Machine Uses a turntable ring structure to achieve film wrapping of goods, is compatible with multiple packaging materials (including paper-based and woven types), supports variable frequency speed adjustment and automatic sensing, and balances packaging efficiency with adaptability. The Stretch Wrap Machine is suitable for the containerized protection of small to medium-sized goods in light industry and electronics industries, and can be customized for special specifications as needed.
Pallet Wrapper Specifications
Turntable Ring Diameter: Φ1500 mm
Goods Compatibility Range: Width 500 mm–1000 mm, Height 500 mm–1000 mm
Packaging Efficiency: End of Line In-line Pallet Wrapper 20–30 pallets/hour
Operating Speed: Working speed 20–40 rpm (variable frequency adjustable), conveying speed 5–8 meters/minute
Main Machine Power: 2.2 kW
Pallet Wrapping Machine Functional Configuration
Control System: PLC control, supports automatic turntable ring reset and automatic goods length sensing.
Film Handling Function: Automatic film loading and cutting structure.
Packaging Materials: End of Line Pallet Wrapper Compatible with LLDPE stretch film, composite kraft paper, woven fabric (width 100 mm–300 mm), and supports custom special specifications.
Cargo Wrapping Machine Applicability:
Suitable for packaging rod-shaped and elongated goods, widely used for pipes, panels, plastic profiles, aluminum profiles, etc.
