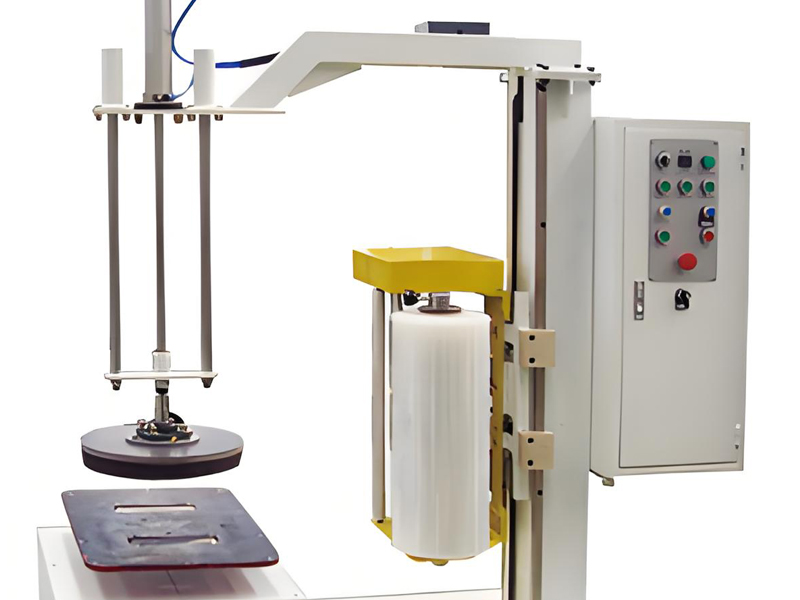

Tray-less Stretch Pallet Wrapper is equipped with a pneumatic top press device to ensure stable and non-scattered goods during the packaging process. The height can be customized according to actual dimensions to meet customer requirements.
Stretch Wrap Machine Performance

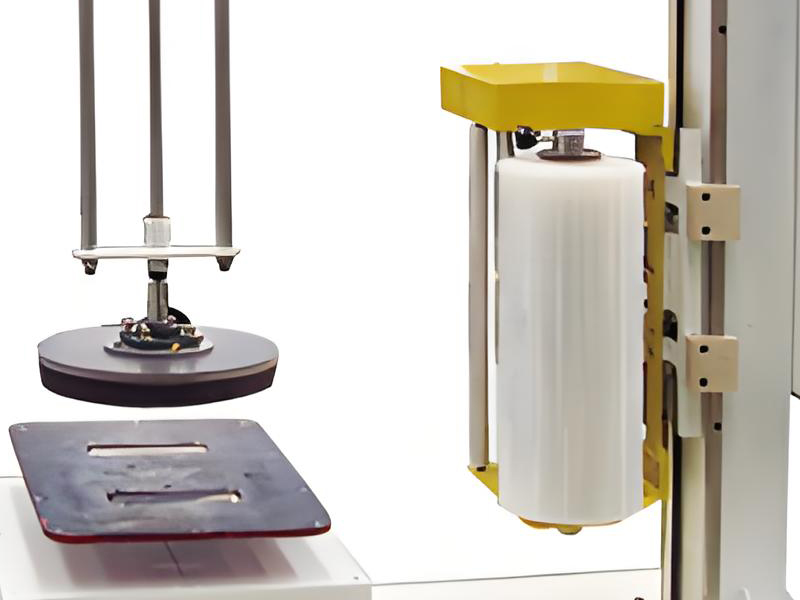

Film carriage system: Equipped with an economical active pre-stretch film carriage, which effectively tightens the packaging film, ensuring wrapping tightness while significantly improving film material utilization and reducing packaging costs.
Top press device: The Pallet Wrapping Machine adopts a pneumatic press arm to securely hold the goods from top to bottom during wrapping, preventing tipping or displacement during rotation.
Wrapping specifications: Suitable for goods dimensions: Length × Width × Height = 600mm × 600mm × (300–600)mm, applicable to: medium and small parts boxes, e-commerce packages, small item combinations, etc.
Packaging efficiency: Approximately 20–40 pieces/hour, suitable for small-batch, multi-batch production or shipping rhythms.
Turntable performance:
Speed 6–20rpm, frequency adjustable (optional), adaptable to different film and packaging tightness requirements;
Conveyor Pallet Wrapper Turntable height 600mm, easy to operate;
Maximum load capacity 100kg, stably supporting various small goods combinations.
Cargo Wrapping Machine Energy Consumption Parameters
Machine weight: 260kg
Overall dimensions: 600mm (length) × 1050mm (width) × 1620mm (height)
Motor power and voltage:
Turntable motor: 0.37kW
Film carriage motor: 0.25kW
Operating voltage: 220V AC, easy to connect
End of Line Pallet Wrapper Features
The Pallet-less Stretch Wrapper, through the combination of a pneumatic top press and an active pre-stretch film carriage, achieves stable and tight packaging of goods without the need for pallets, ensuring packaging quality while balancing equipment cost and film consumption savings.
The Pallet-less Stretch Wrapper is widely used in small-batch shipping scenarios in industries such as light industry, e-commerce, hardware, and automotive parts. The equipment supports customization according to specific customer goods specifications, flexibly meeting diverse pallet-less wrapping needs.
