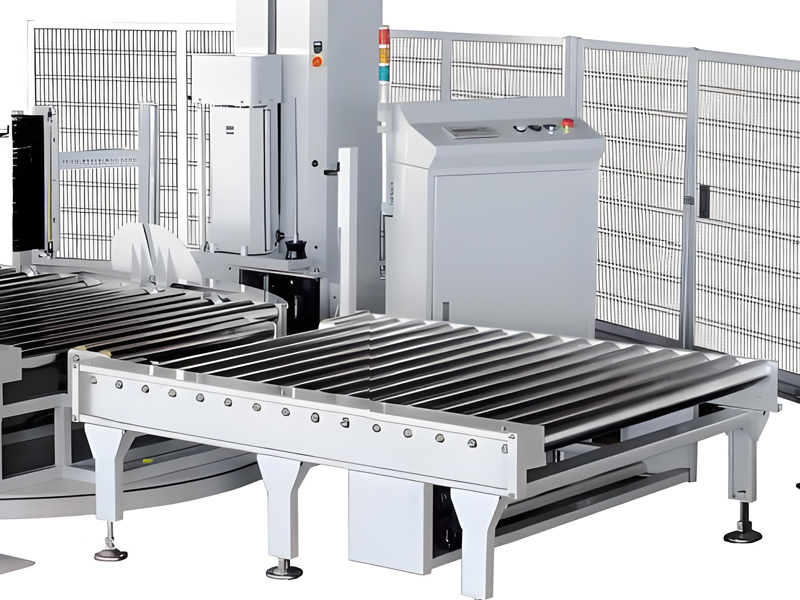

Automatic Pallet Stretch Wrapper adopts a roller-type turntable structure, achieving continuous and uniform film wrapping for palletized goods passing through the production line via precise turntable rotation and film pre-stretching technology. The Stretch Wrap Machine utilizes a PLC intelligent control system to automatically adapt to goods of different specifications and complete packaging operations without stopping, making it an ideal choice for modern smart factories, large logistics centers, and large-scale production enterprises to enhance packaging automation levels.
Technical Parameters
Power Supply: 380V, 3-phase, 50Hz industrial power
Air Pressure: 0.6–0.8 MPa for consistent pneumatic operation
Turntable Specifications
Speed: 0–10 rpm, continuously adjustable to match production flow
Diameter: 2000 mm turntable for stable rotation
Tabletop Design
Type: Roller conveyor tabletop
Height: Minimum 450 mm for easy integration with conveyor systems
Roller Details: 76 mm diameter rollers with treated surfaces to ensure smooth movement and low friction
Cargo Wrapping Machine Mast System
Standard Mast Height: 2400 mm
Optional Heights: 2000 mm, 2700 mm, 3000 mm, 3200 mm, 3400 mm
Load Capacity: Up to 2000 kg
Effective Wrapping Height: Mast height minus 400 mm (reserved mechanical space)
Packaging Film
Film Type: LLDPE stretch film
Maximum Film Width: 500 mm
Maximum Roll Diameter: 280 mm
Performance Advantages
Continuous Production: Pallet Wrapping Machine Achieves synchronization between production and packaging, significantly improving overall logistics efficiency, capable of handling a large number of standard pallets per hour.
Automation: Industrial Stretch Wrapping Equipment enables full-process automation from parameter matching to packaging completion and automatic discharge, greatly reducing reliance on manpower and operational errors.
Low Cost: Pre-stretching technology can save 30%-50% of film usage, directly reducing long-term packaging material costs.
Stable Performance: Heavy-duty steel frame body, high-quality key components, and roller-type low-wear design ensure long-term stable operation of the equipment under heavy-load and continuous working conditions.
Strong Adaptability: Intelligent Pallet Wrapper offers multiple mast height options to accommodate packaging for goods ranging from low to ultra-high; easily integrates with various automated logistics systems.
