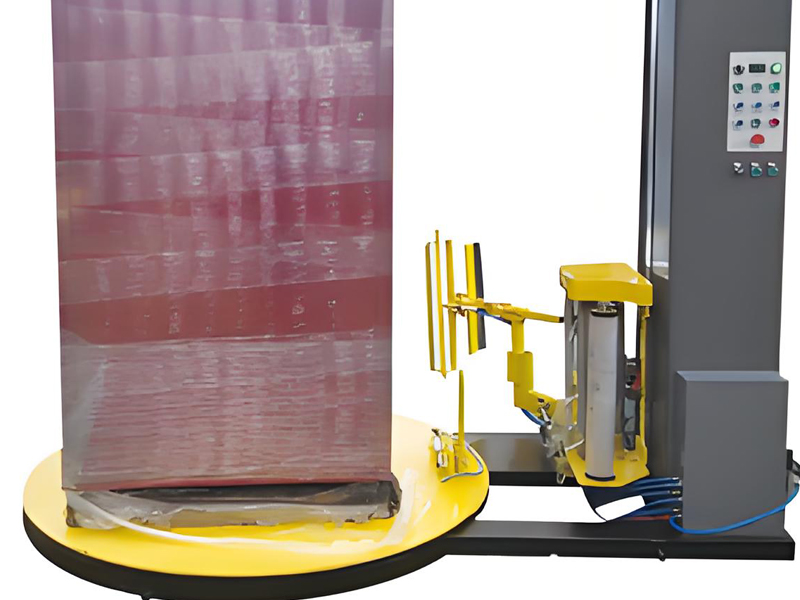

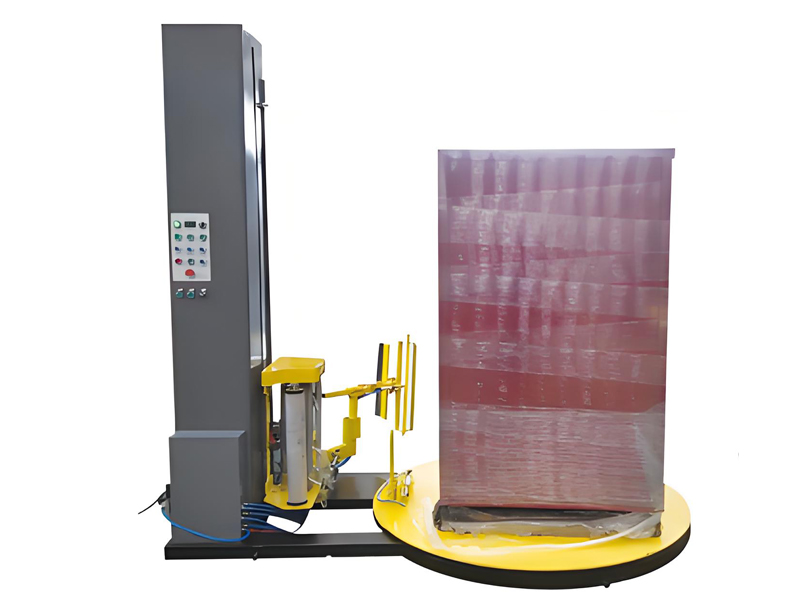

Remote Control Type Automatic Film Winding Machine integrates remote control operation, supporting remote monitoring and parameter adjustment, enabling safe and efficient contactless operation in complex or hazardous environments. It achieves full-process automation from film wrapping to finishing for palletized goods, enhancing the intelligence level and production efficiency of packaging operations.
Basic Technical Parameters
Wrapping Specifications: 500–1200 mm (length) × 500–1200 mm (width)
Packaging Height: L-type: Maximum 1600 mm (suitable for regular goods); H-type: Maximum 2400 mm (suitable for tall goods)
Packaging Efficiency: 30–50 pallets/hour
Turntable System: Diameter: 2000 mm, Speed: 6–12 rpm variable frequency adjustable, Features: Smooth start and stop, stable operation
Film Carriage System: Pre-stretching film carriage (stretch rate 250%), automatic film feeding + variable frequency speed control
Lifting System: Stretch Wrap Machine dual-chain structure, lifting speed variable frequency adjustable
Pneumatic System: Working pressure 0.4–0.8 MPa
Packaging Material: LLDPE stretch film (thickness 17–35 μm, width 500 mm)
Power Configuration: Turntable 0.75 kW, film carriage 0.25 kW, lifting column 0.37 kW, 220V AC
Functional Features
Remote Intelligent Operation System: Equipped with a handheld wireless remote controller, supporting long-distance operation. Pallet Wrapper enables real-time monitoring of equipment operation status and remote adjustment of operating parameters, End of Line Pallet Wrappe suitable for integration into automated production lines, reducing the need for manual intervention.

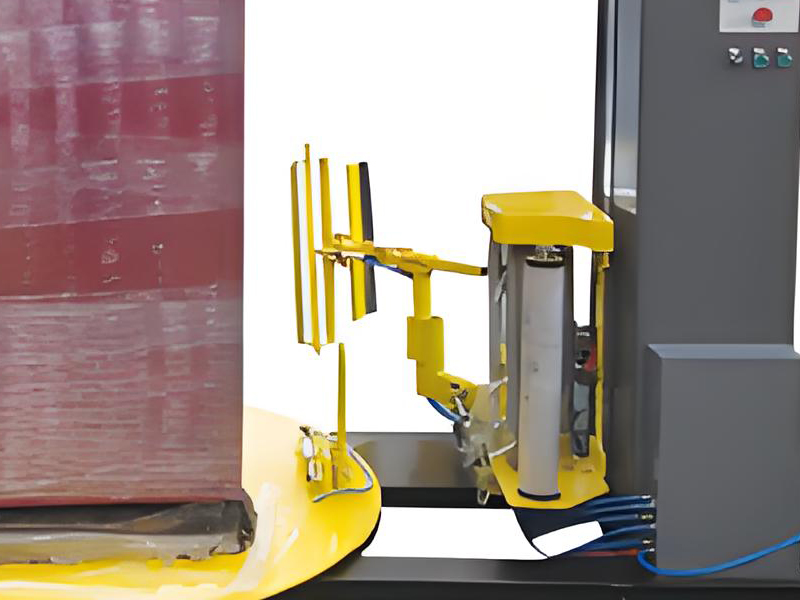

Automatic Film Loading/Cutting System: Pallet Wrapping Machine is driven by a pneumatic control system, achieving integrated automatic film loading, cutting, and smoothing. The film cutting is neat with no film residue, improving packaging aesthetics. It supports automatic replacement and tension adjustment of different film materials.
Efficient Pre-stretching Technology: Pre-stretching film carriage system with a film stretch rate of 250%. Automatic film feeding combined with variable frequency speed control ensures uniform and stable film tension, reducing film consumption and saving packaging material costs by over 30%.
Intelligent Control System: Cargo Wrapping Machine adopts a PLC programmable controller, ensuring stable and reliable operation. It supports preset storage of parameters such as wrapping layers, cycles, and height, automatically senses cargo height and optimizes the packaging path, and features automatic turntable reset to reduce equipment downtime.
