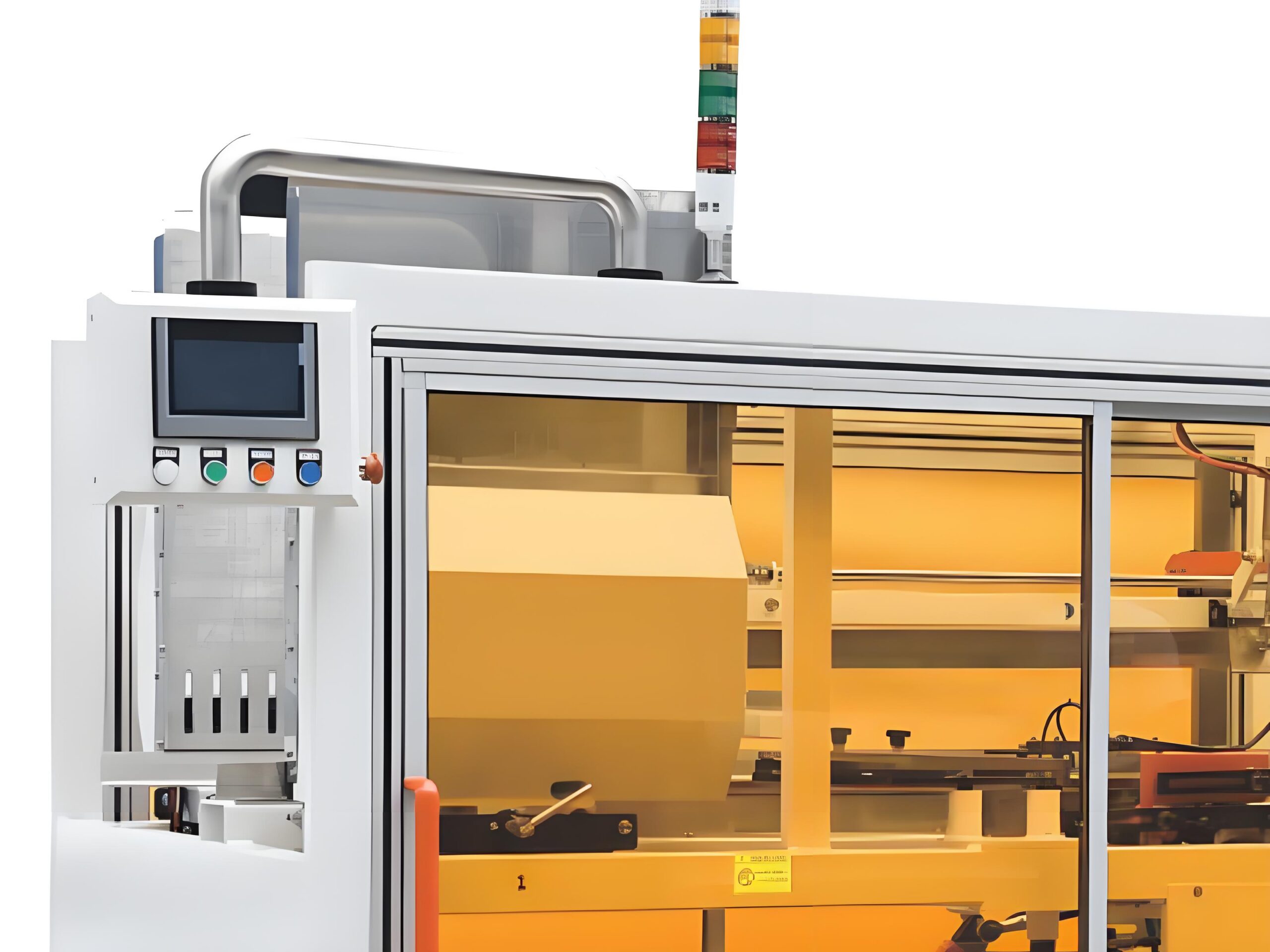

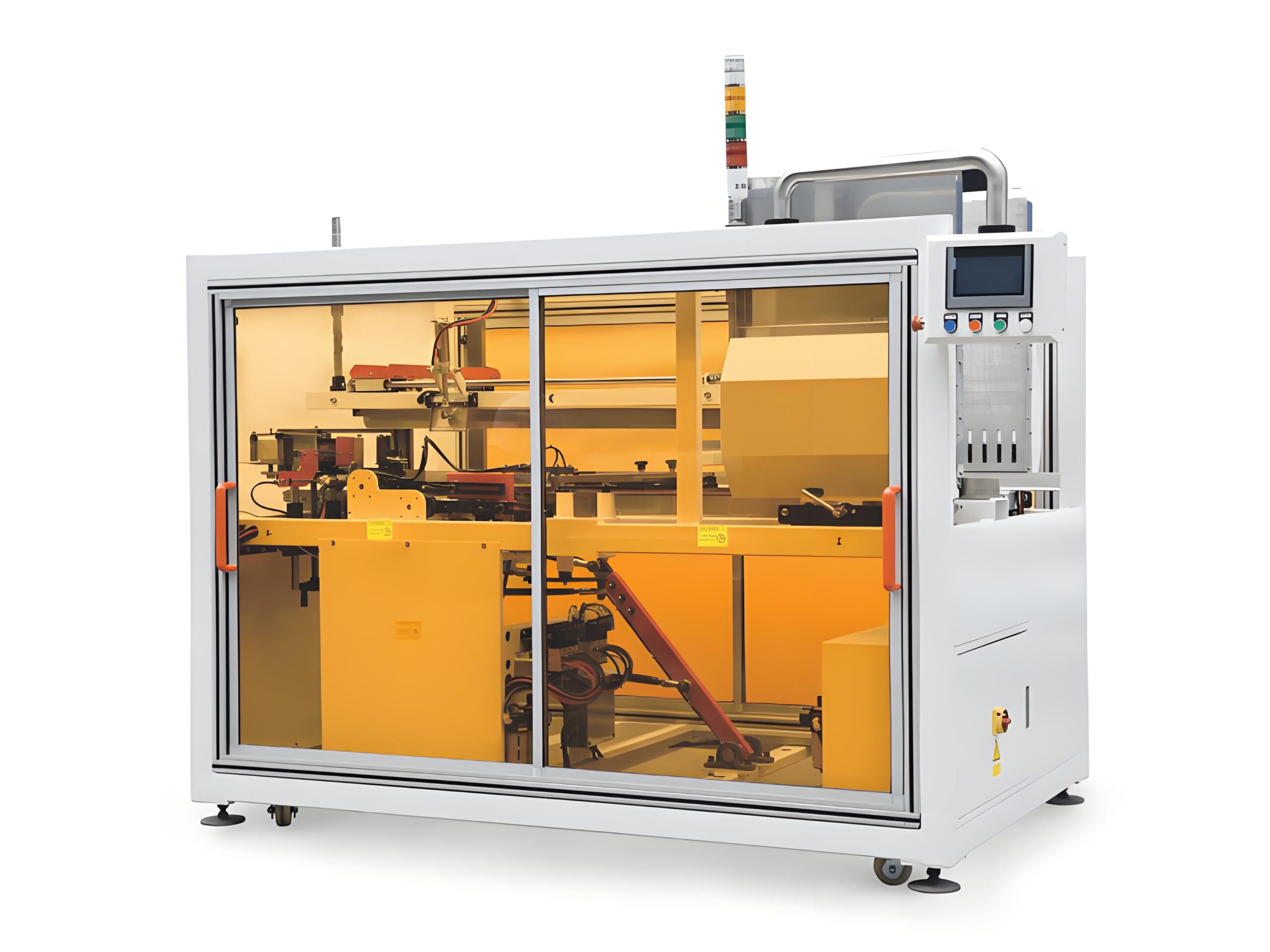

Horizontal High-Speed Carton Erector

Get Latest Price

Contact Now

Product Description

Horizontal High-Speed Carton Erector Adopts side-forming technology, integrating automated control systems and high-precision mechanical structures to meet modern production lines' requirements for high efficiency, high stability, and low energy consumption. Automatic Case Erector Machine Suitable for high-speed forming and bottom sealing of various carton specifications, widely applicable in automated packaging lines for industries such as food, daily chemicals, electronics, and logistics.

Carton Erector Parameters:

Power Supply: 380V 50Hz 1.5KW

Air Source: 0.5–0.6MPa

Air Consumption: 480NL/min

Dimensions: L2310×W1420×H1650mm (actual dimensions prevail)

Table Height: 1050mm

Carton Forming Machine Weight: 880kg (actual weight prevails)

Carton Specifications: L280-500×W160-400×H130-400mm, L+W<900, 220

Sealing Type: Tape

Applicable Tape: W48, 60, or 72mm (choose one)

Leader Tape Length: 50mm

Tape Length: ≤1000M

Forming Speed: 20–25 cartons/minute

Opening Method: Side-forming

Case Erector And Packer Features:

Case Erector And Packer Complies with production line processes and layout requirements, featuring an aesthetically pleasing appearance and excellent manufacturing craftsmanship;

Low electricity and water consumption, with simple, quick operation, adjustment, and maintenance;

Equipped with robust self-protection functions, such as overload protection and safety doors;

Includes automatic tape absence alarm and comprehensive mechanical, electrical, and process protection functions;

Storage Mechanism: Can hold a minimum of 50–80 unformed cartons at a time (depending on carton thickness) and allows for continuous replenishment.
