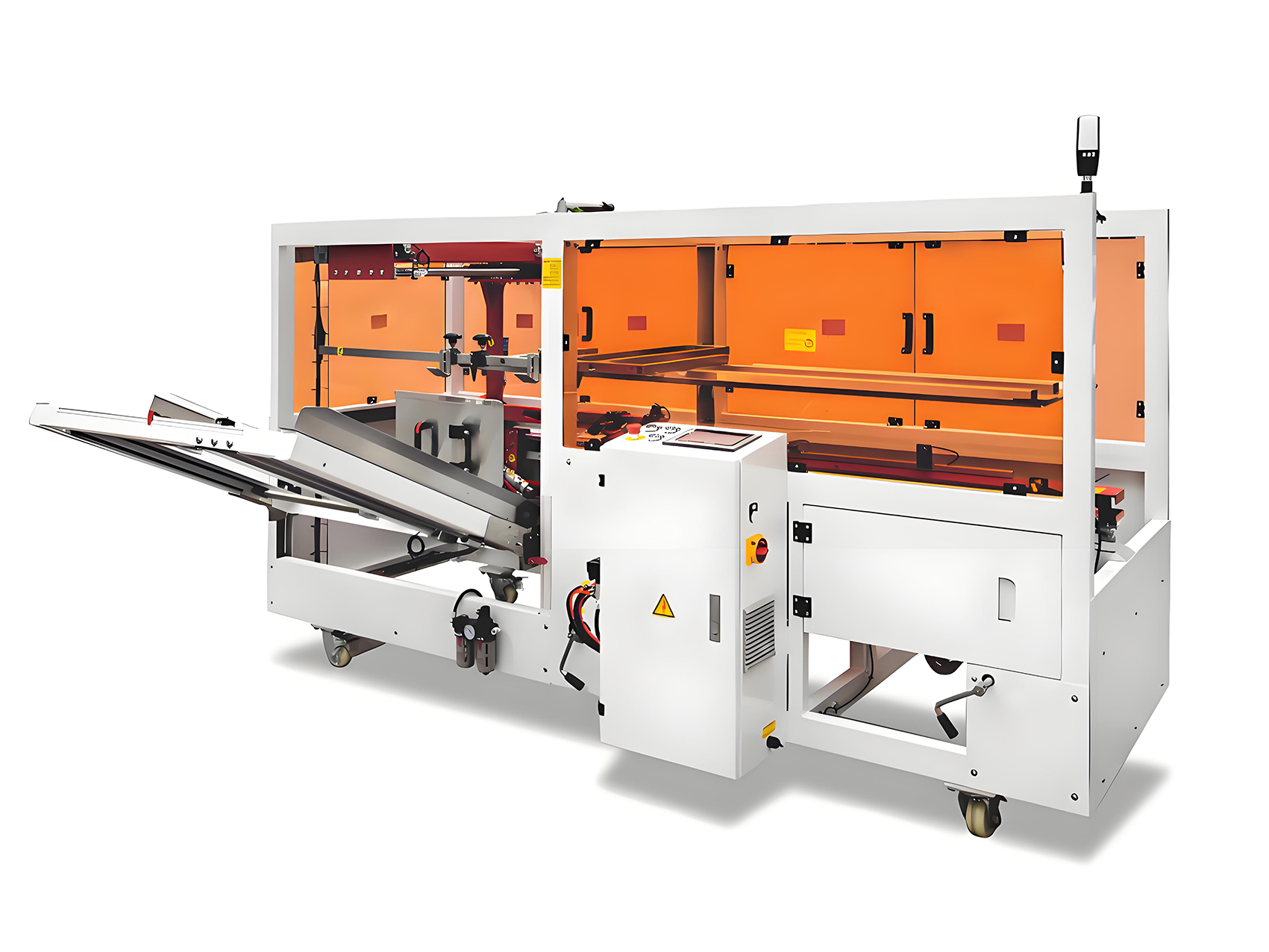

Servo-Forming Medium-Speed Carton Erector

Get Latest Price

Contact Now

Product Description

The Servo-Forming Medium-Speed Carton Erector utilizes the data controllability of servo motion to quickly and flexibly handle forming actions, adapting to cartons of different materials. Before the Carton Erector, the length and width data of all cartons must be manually debugged and pre-stored in the system. When switching specifications, the carton specifications are first retrieved on the touchscreen, after which only the discharge dimensions and hopper dimensions need to be manually adjusted. This reduces manual adjustment steps and improves the operational stability of the equipment after specification changes.

Technical Parameters:

Applicable Power Supply: 220V 50Hz 1.9KW

Applicable Air Pressure: 0.5–0.6 MPa

Air Consumption: 480 NL/min

Machine Dimensions: L2780×W1930×H1650 mm

Applicable Carton Dimensions: L220–600×W160–400×H150–400 mm

Tape Width: 48–72 mm

Forming Speed: 15–20 boxes/minute (adjustable)

Worktable Height: 650 mm

Carton Forming Machine Opening Method: Vertical servo forming. When changing specifications, the hopper, blocking mechanism, discharge width, and height of the machine are manually adjusted, while the suction and pushing positions can be switched with one touch on the screen. The High Speed Carton Erector Forming Machine can also be customized as a fully servo-switching model according to customer requirements.

Automatic Case Erector Machine Features:

The Case Erector And Packer meets the requirements of the production line's process flow and layout, with an aesthetically pleasing appearance and excellent manufacturing craftsmanship.

It has low electricity and water consumption, and is simple and quick to operate, adjust, and maintain.

The Fully Automatic Carton Box Making Machine has robust self-protection functions, such as overload protection, and includes alarm functions for tape absence or cardboard box absence.

Storage Mechanism: The Automatic Carton Box Making Machine can hold approximately 50 unformed cartons at a time (depending on carton thickness).
