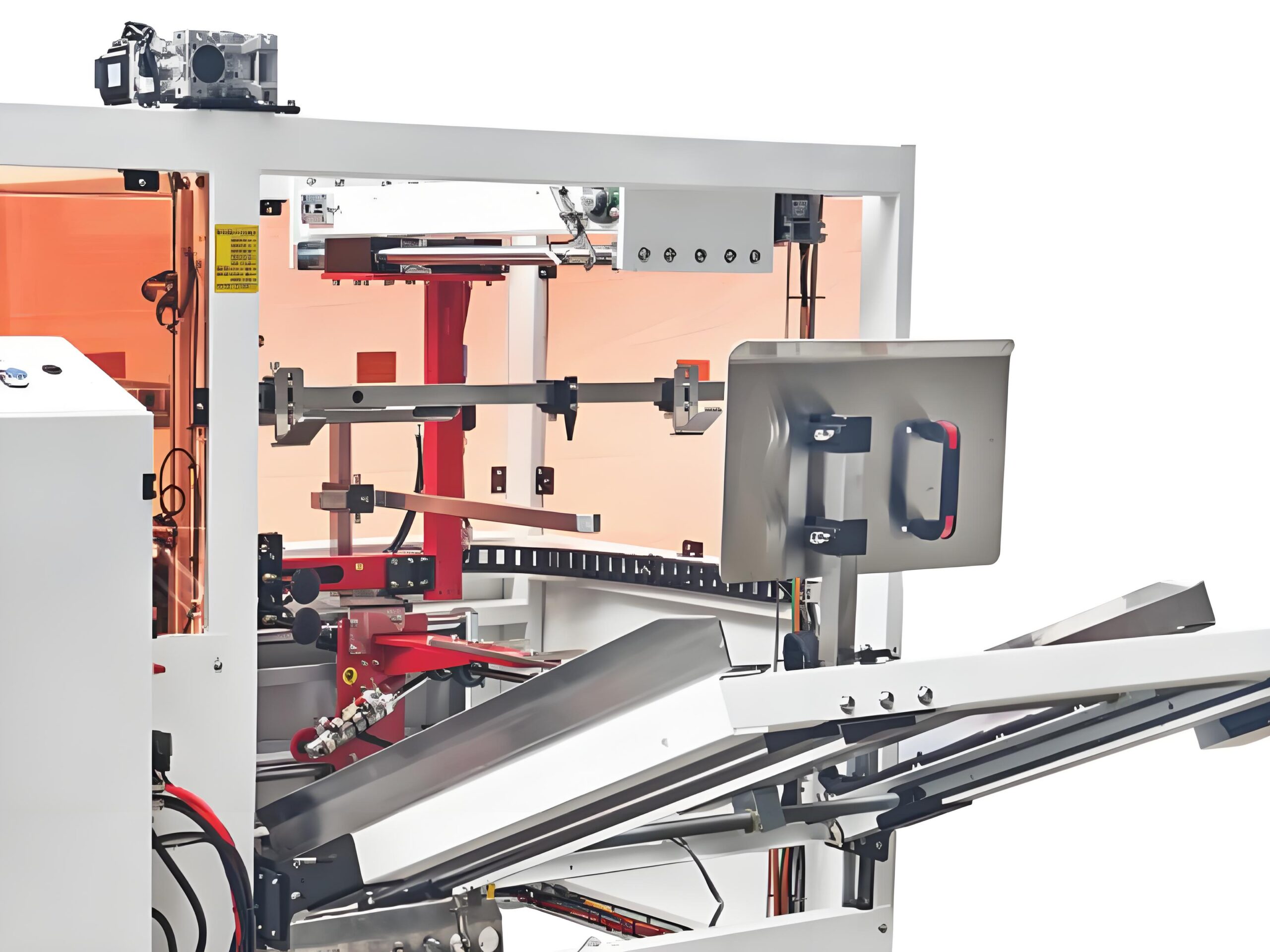

Single-Button Servo Low-Speed Box Erector

Get Latest Price

Contact Now

Product Description

Single-Button Servo Low-Speed Carton Erector achieves precise control of the entire process, including carton unfolding, positioning, and forming, through a servo system. Combined with its "one-touch switching" function, it significantly improves efficiency in specification changes. High Speed Case Erector And Packer is an ideal solution for small to medium-scale flexible packaging production.

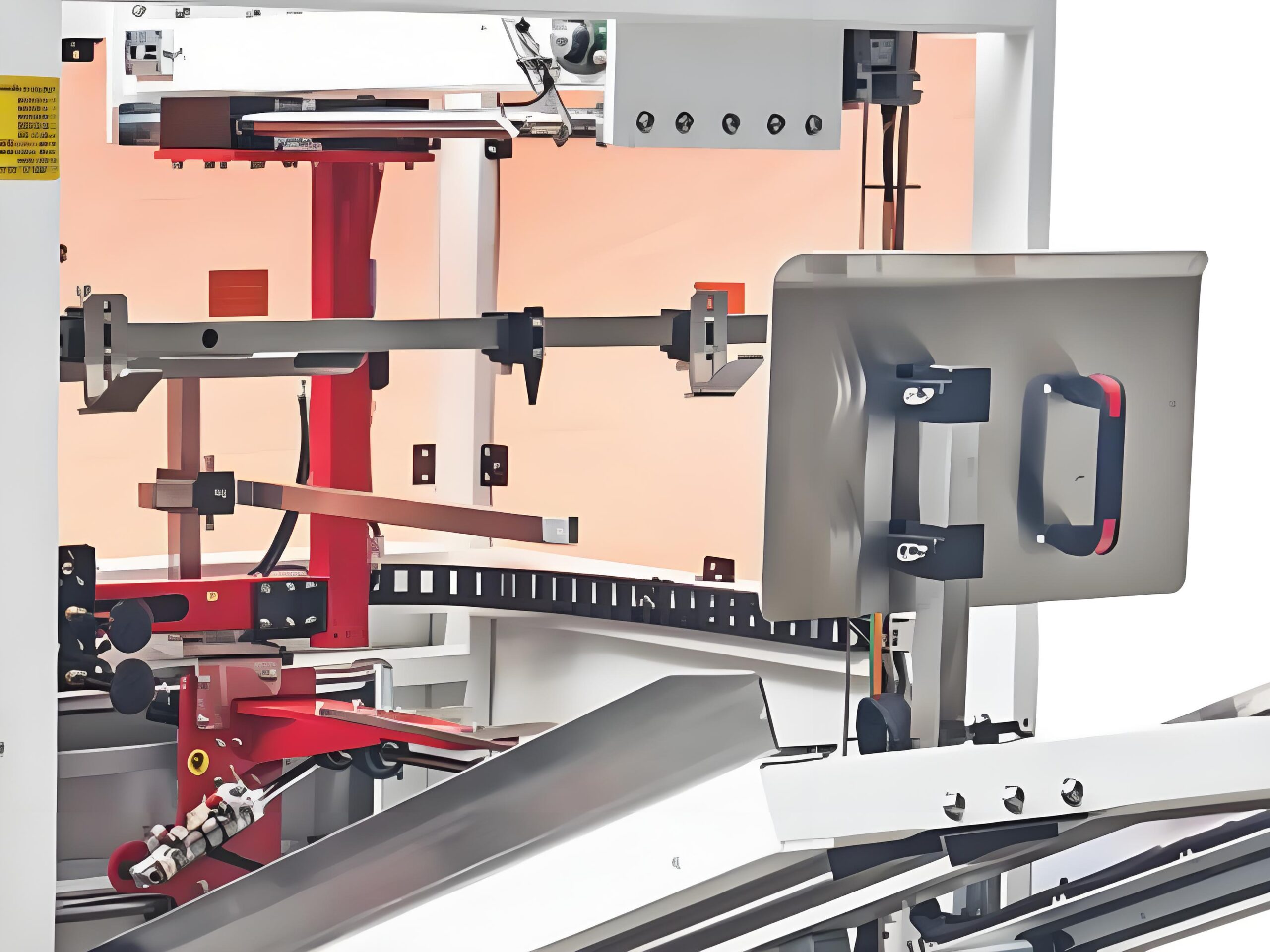

Single-Button Servo Low-Speed Box Erector

Technical Parameters

Applicable Power Supply: 220V 50Hz 3.85KW

Applicable Air Pressure: 0.5–0.6MPa

Air Consumption: ≤450 NL/min

Carton Forming Machine Dimensions: L2082×W2020×H1500mm

Compatible Carton Range:

Length: 220–600mm

Width: 160–400mm

Height: 150–400mm

Tape Width: 48–72mm

Forming Speed: 5–15 boxes/minute (adjustable)

Unpacking Method: Vertical servo forming

Core Technical Features

One-Button Intelligent Specification Switching: High Speed Automatic Case By entering the carton specification code on the touchscreen, the system automatically calls pre-stored parameters and synchronously adjusts hopper height/width, discharge width/height, as well as forming suction and pushing positions. The suction cup position and hopper blocking mechanism support manual fine-tuning to accommodate dimensional fluctuations and ensure compatibility accuracy.

Full Servo-Driven Forming System: Erector Machine Forming Machine adopts high-response servo motors paired with precision transmission mechanisms to achieve millimeter-level control of carton unfolding and forming actions. The forming speed can be steplessly adjusted within the range of 5–15 boxes/minute to adapt to different production rhythms.

Data Pre-Storage and Flexible Adaptation: The Case Erector And Packer supports pre-storage of multiple sets of carton specification parameters (compatible range: L220–600×W160–400×H150–400mm). It can handle various materials such as cardboard, corrugated paper, and laminated paper, offering good adaptability to irregular or deformable cartons.

Intelligent Monitoring: The Servo Automatic Case Erector integrates safety functions such as overload protection, tape absence alarms, and cardboard box absence detection. Operating status is displayed in real time, and fault information is automatically diagnosed and prompted.
