Product Description

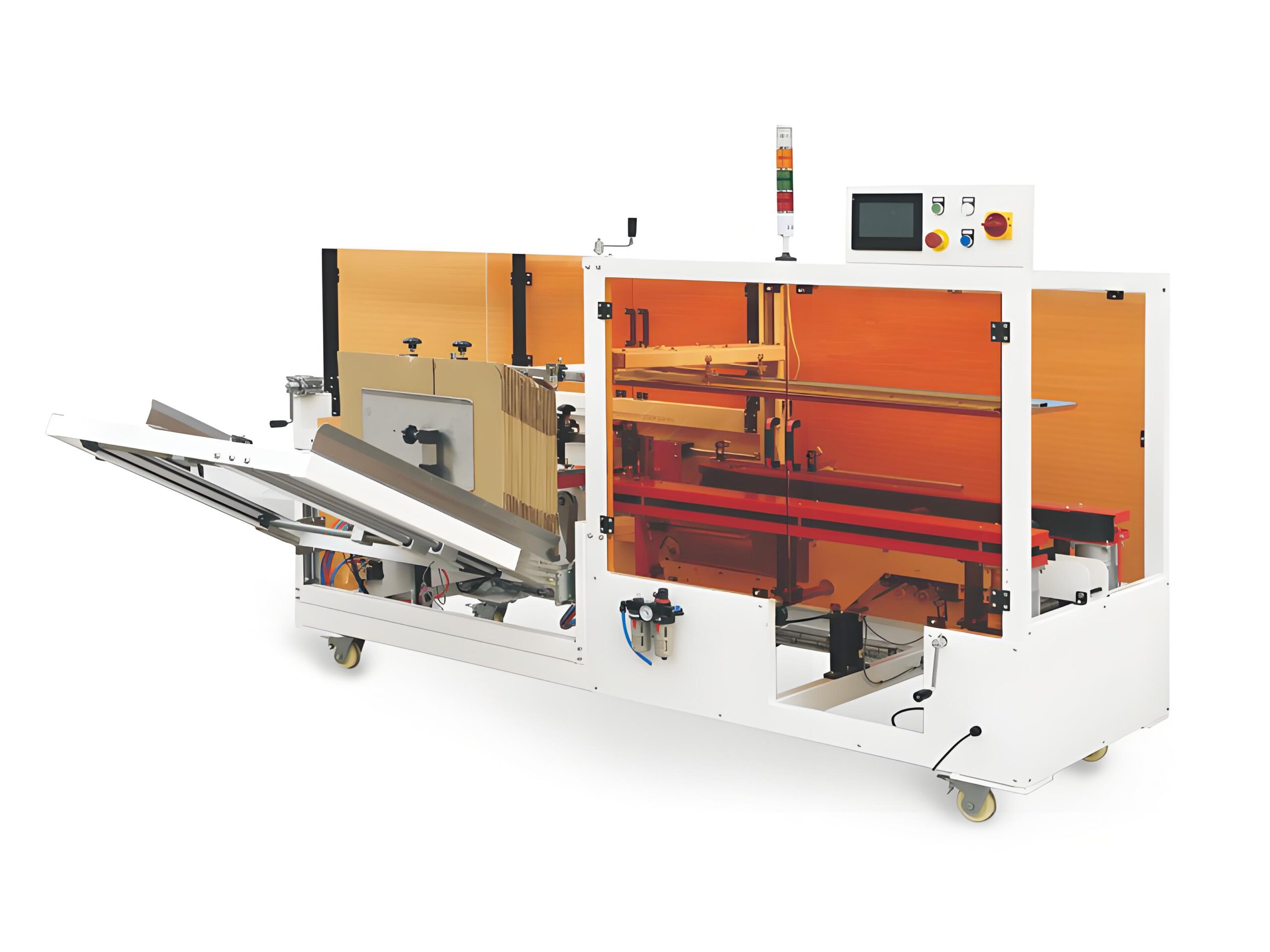

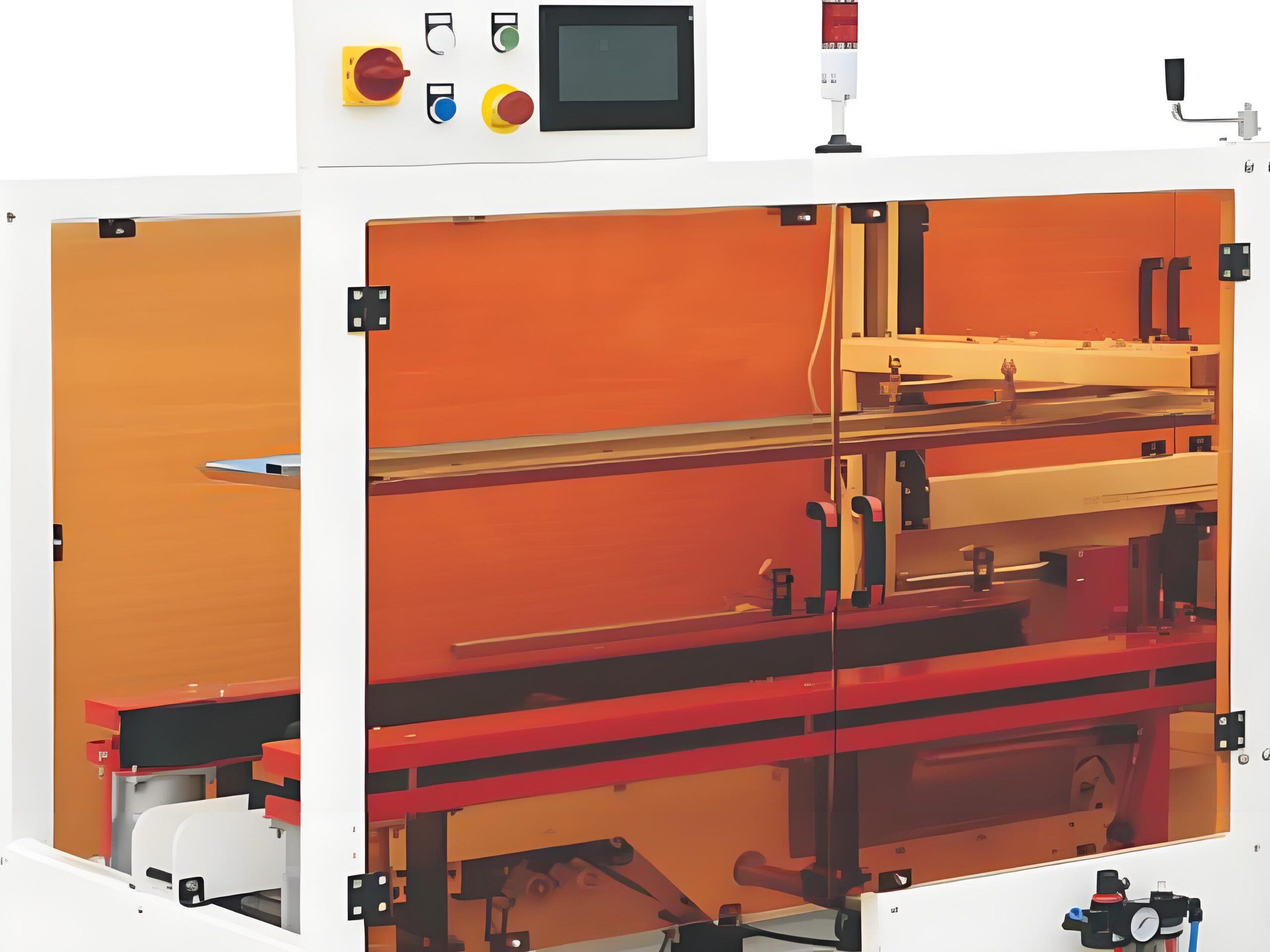

Pneumatic Box Forming Machine is a semi-automatic/fully automatic device that uses pneumatic technology to achieve carton automatic forming and bottom sealing. The Carton Erector completes carton pickup, unfolding, bottom folding, and pressing through cylinder-driven actions, Case Erector And Packer making it suitable for standardized packaging operations of small to medium batches and multi-specification cartons.

Detailed Specifications:

Power Supply: 220V 50Hz 400W

Air Pressure: 0.5–0.6 MPa

Air Consumption: 480 NL/min

Dimensions: L2540×W1950×H1500 mm (subject to actual measurement)

Weight: 550 kg

Compatible Carton Dimensions: L280–480×W160–350×H+W/2=300–620 mm

Height: 650 mm

Tape Width: 48–72 mm

Forming Speed: 15–16 boxes/minute (depending on carton size)

Opening Method: Vertical cylinder forming

Features of Carton Forming Machine:

Case Forming Machine is designed to comply with the production line's process flow and layout requirements, featuring an aesthetically pleasing appearance and excellent manufacturing craftsmanship.

It has low electricity and water consumption, with simple and quick operation, adjustment, and maintenance.

Automatic Pneumatic Box Maker is equipped with robust self-protection functions, such as overload protection and safety doors.

It includes alarm functions for tape absence or cardboard box absence.

Storage Mechanism: Can hold approximately 50 unformed cartons at a time (depending on carton thickness).

High-Speed Pneumatic Carton Sealer is suitable for batch production of a single specification at the same time, with manual adjustments required when changing specifications.
