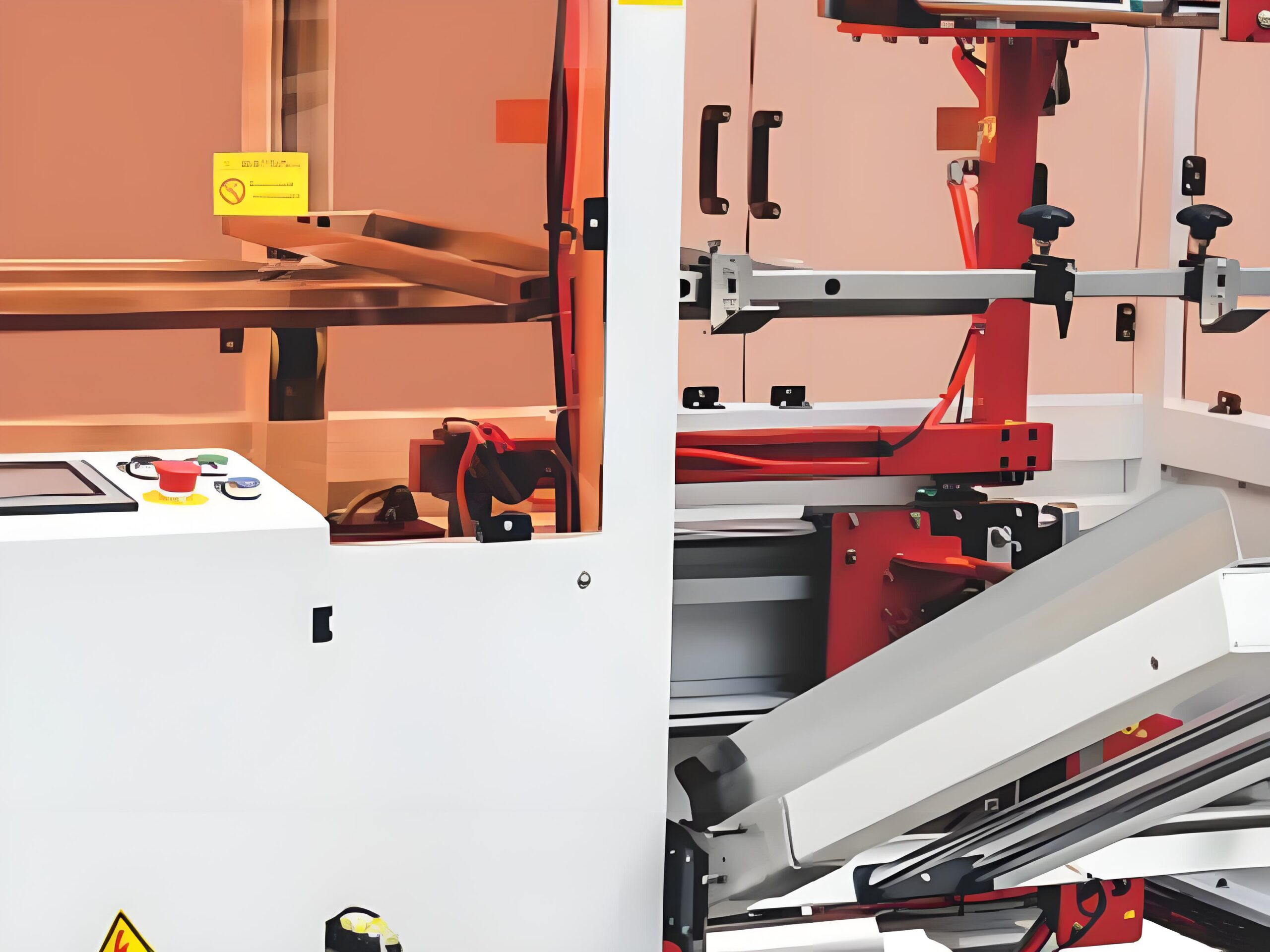

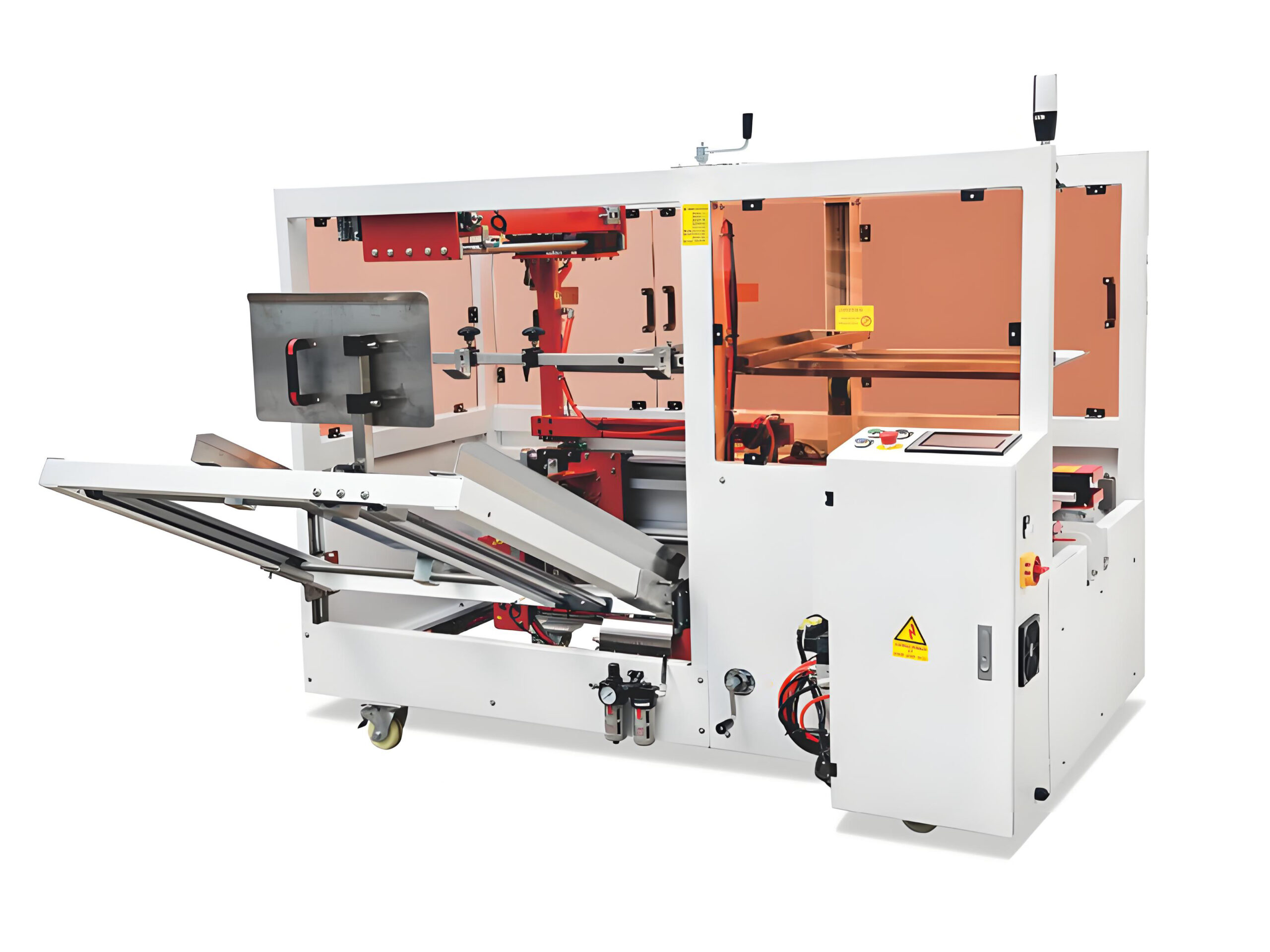

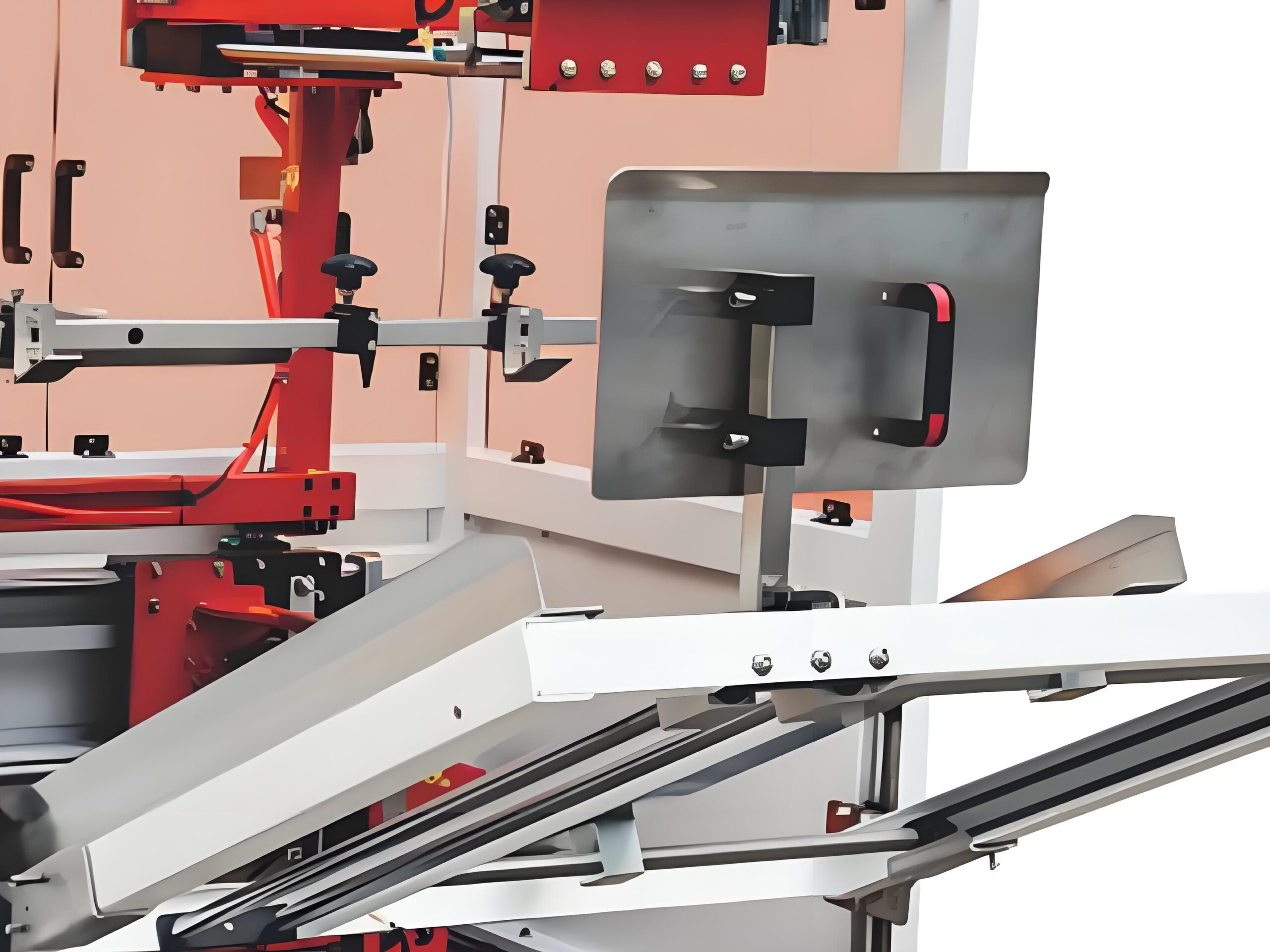

Servo-Forming Low-Speed Carton Erector

Get Latest Price

Contact Now

Product Description

The Servo-Forming Low-Speed Carton Erector is a low-speed, high-precision carton unpacking device that uses a servo motor-driven forming mechanism. By precisely controlling the unfolding, positioning, and forming actions of cartons through a servo system, it is suitable for small to medium-sized packaging lines that require high forming accuracy, diverse carton materials, and flexible production rhythms.

Technical Parameters

Applicable Power Supply: 220V 50Hz 1.9KW

Applicable Air Pressure: 0.5–0.6 MPa

Air Consumption: ≤450 NL/min

Machine Dimensions: L2082×W2020×H1500 mm

Compatible Carton Erector Range:

Length: 220–600 mm

Width: 160–400 mm

Height: 150–400 mm

Tape Width: 48–72 mm

Forming Speed: 5–15 boxes/minute (adjustable)

Unpacking Method: Vertical servo forming

Core Features of Carton Forming Machine

Servo-Driven Forming System

The Case Forming Machine uses high-performance servo motors combined with lead screw/synchronous belt transmission to achieve precise control of carton unfolding and forming actions.

The repeatability accuracy of the forming position can reach ±0.5mm, ensuring consistency in carton forming.

Supports stepless speed adjustment of 5–15 boxes/minute to adapt to different production rhythms.

Intelligent Specification Switching

One-Key Switching Mode: Pre-set multiple groups of carton specification parameters (L220–600×W160–400×H150–400mm) via the touchscreen, and simply recall the corresponding parameters when switching.

Manual Auxiliary Adjustment: Hopper width, blocking mechanism, and discharge guide rails require synchronous manual adjustment (supports customization of fully servo-automatic adjustment models).

Data Pre-Storage System: All carton dimension parameters can be pre-stored in the control system before, enabling quick calling.

Flexible Adaptability

The High Speed Carton Erector can handle cartons of different thicknesses and stiffnesses (such as cardboard, corrugated paper, and specially coated cartons).

The storage mechanism has a capacity of approximately 50 cartons (depending on carton thickness) and supports mid-production replenishment.

The servo motion trajectory is programmable, adapting to the stable forming of irregular or deformable cartons.

Safety and Intelligence

The Servo Motor Carton Erector is equipped with overload protection, safety door locks, emergency stop buttons, and other safety features.

It includes audible and visual alarms for tape absence or cardboard box absence.

Real-time display of operating status and fault information prompts.
