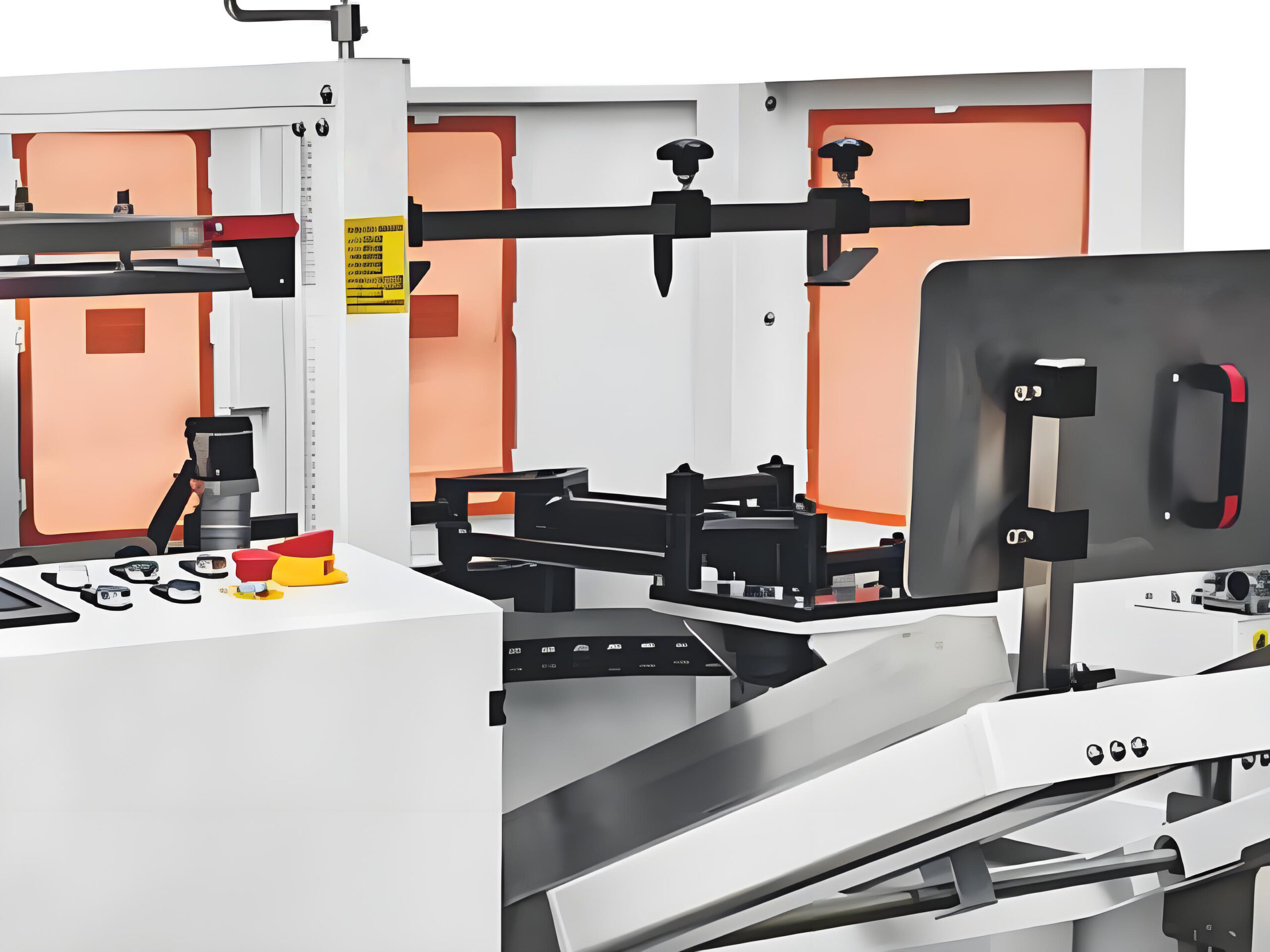

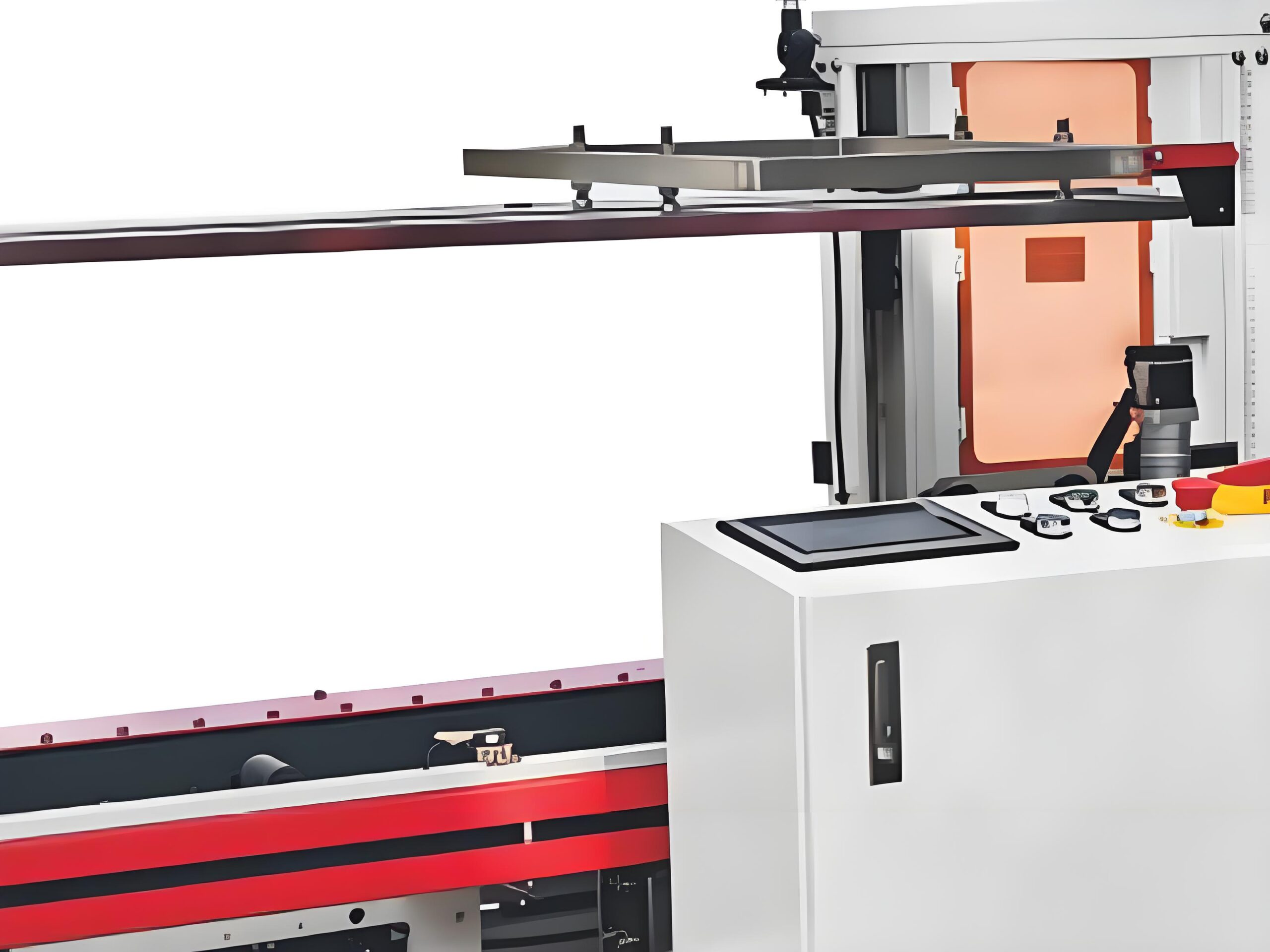

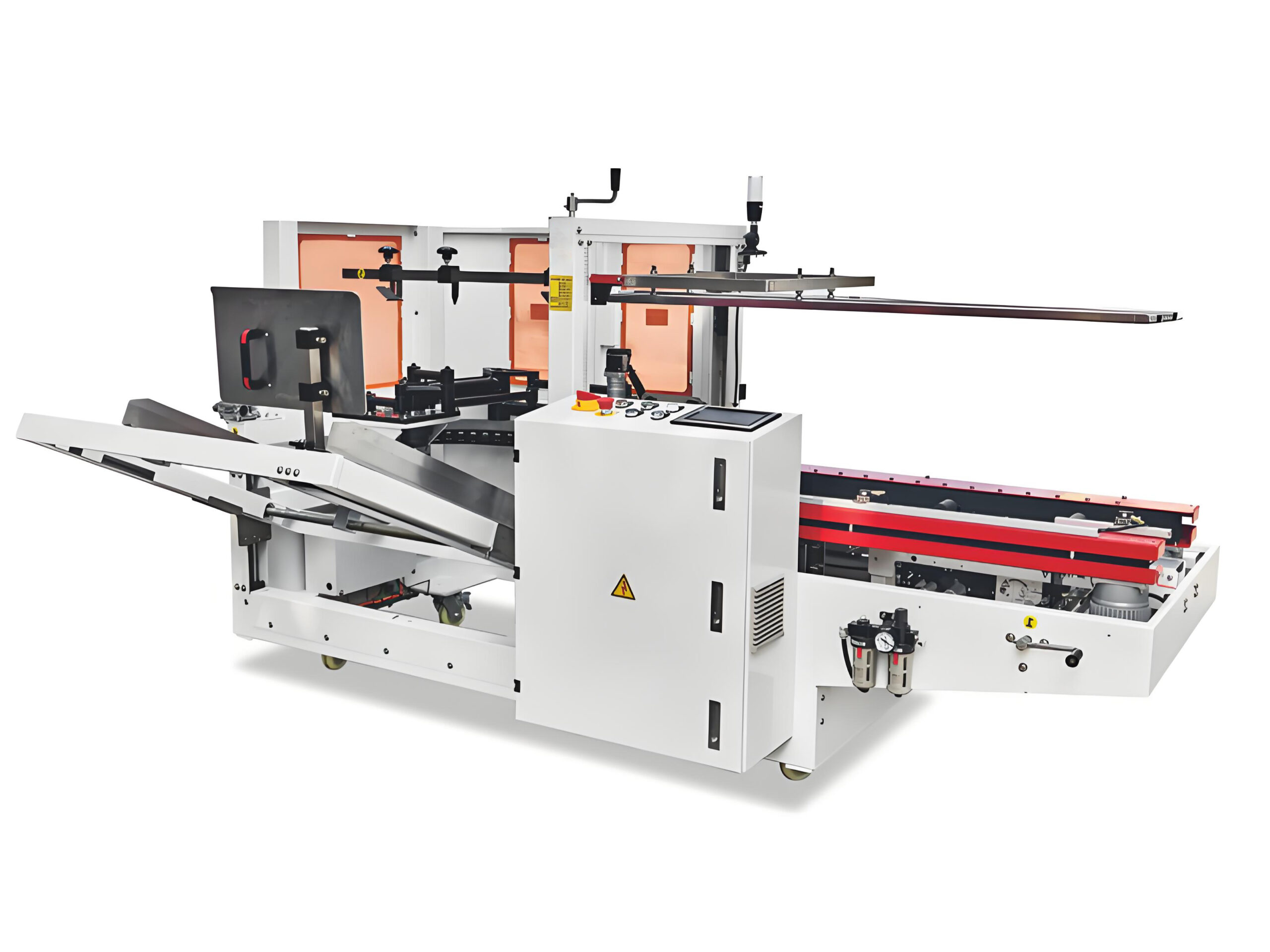

Robotic Forming High-Speed Carton Erector

Get Latest Price

Contact Now

Product Description

Robotic Forming High-Speed Carton Erector meets the demands of logistics and production lines for fast, stable carton forming. High Speed Case Forming Machine employs vertical robotic arm forming technology to efficiently and precisely suction, expand, erect, and bottom-seal flattened cartons, enhancing packaging efficiency and reducing labor costs.

Logistics Automated Case Erector Specifications

Power Supply: Single-phase 220V / 50Hz / 2.2KW.

Air Pressure: 0.6-0.7MPa, stable operation.

Dimensions: 2830mm(L) × 1896mm(W) × 1522mm(H), compact structure.

Speed: 5-25 boxes/min, adjustable speed.

Height: 650mm, easy to operate.

Custom Robotic Carton Solution Strong Adaptability

Small: Length 145-300mm × Width 80-200mm × Height 150-250mm

Large: Length 250-450mm × Width 180-350mm × Height 150-350mm

Tape: Standard 48mm tape, Large model: 48-72mm wide tape.

Specification Changeover: High Speed Carton Forming Machine For standard models, quickly complete changeover by manually adjusting the magazine, carton stops, discharge width/height, combined with one-touch suction/push position switching on the touch screen, greatly reducing downtime. Fully automatic changeover models can be customized on demand.

Carton Carton Erector adopts vertical robotic arm forming, offering precise movement, strong rigidity, and square forming, suitable for various sizes and materials of different hardness. Compared to traditional carton opening methods, robotic forming provides wider adaptability to cartons, smoother operation, lower noise, and better long-term stability.

Custom Robotic Carton Solution Intelligent Design

Large capacity storage: The material hopper can load approximately 50 flattened cartons per batch, supporting uninterrupted material replenishment to ensure continuous and stable production.

Intelligent monitoring: Carton Forming Machine is equipped with precision sensing devices that monitor tape supply and board status in real time, automatically alarming for tape shortage or empty cartons to effectively prevent equipment idling and defective output.

Multi-layer safety protection: Compliant with safety design standards, Case Forming Machine integrating multiple safety interlock mechanisms such as overload protection and emergency braking, providing comprehensive protection for both equipment and personnel.

Intelligent interactive interface: High Speed Carton Erector Features a user-friendly touchscreen control system with clearly partitioned functions including parameter setting, operational status display, Case Erector And Packer and one-touch model changeover, ensuring simple and intuitive operation.

Automatic Case Erector Machine Application Fields

Robotic High-Speed Carton Erector is widely used in automated packaging lines across industries such as food, beverage, daily chemicals, electronics, pharmaceuticals, e-commerce logistics, cosmetics, and industrial products.
