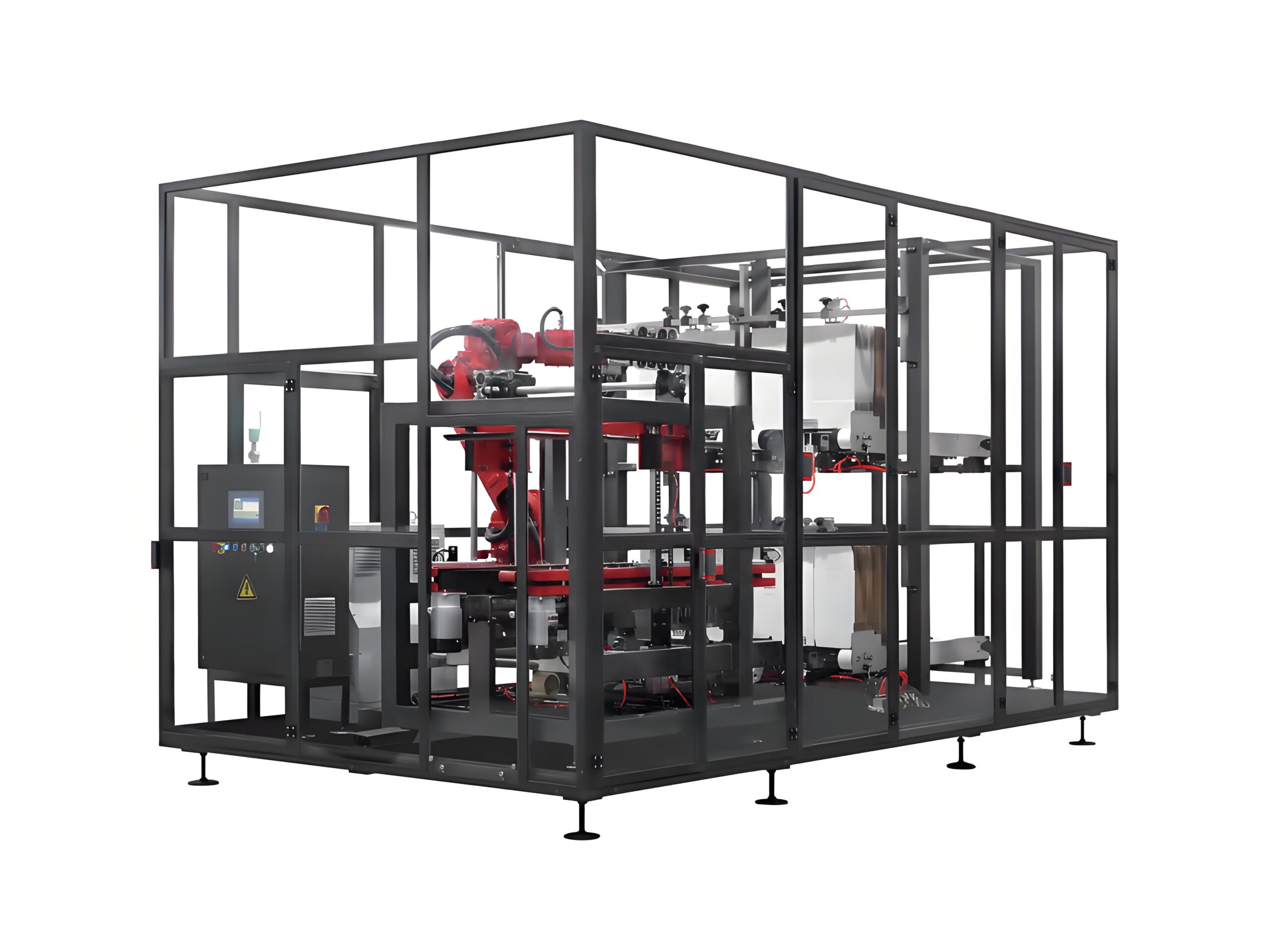

Multi-Station Robotic Carton Erector

Get Latest Price

Contact Now

Product Description

The Multi-Station Robotic Carton Erector achieves continuous carton grasping, simultaneous forming, intelligent positioning, and efficient sealing through a multi-axis industrial robot coordinated with a multi-station parallel operation system. High Speed Carton Forming Machine designed for large-scale, multi-specification, and high-cycle production, significantly enhancing production flexibility and overall line efficiency.

Robotic Carton Erector Detailed Parameters

Power Supply: 220V 50Hz 6.7KW

Pressure: 0.6–0.8 MPa

Dimensions: 4050×2220×2400 mm

Tape Width: 48–72 mm

Operating Speed: Dynamically adjusted according to carton size, with standard carton speed reaching 18–35 boxes/minute

Repeatability Accuracy: ±0.3mm

Features of Carton Erector

Multi-Station Parallel Processing: Equipped with 2–4 independent stations, supporting simultaneous feeding, box opening, bottom folding, and sealing operations for cartons of different sizes, eliminating production delays and significantly increasing output.

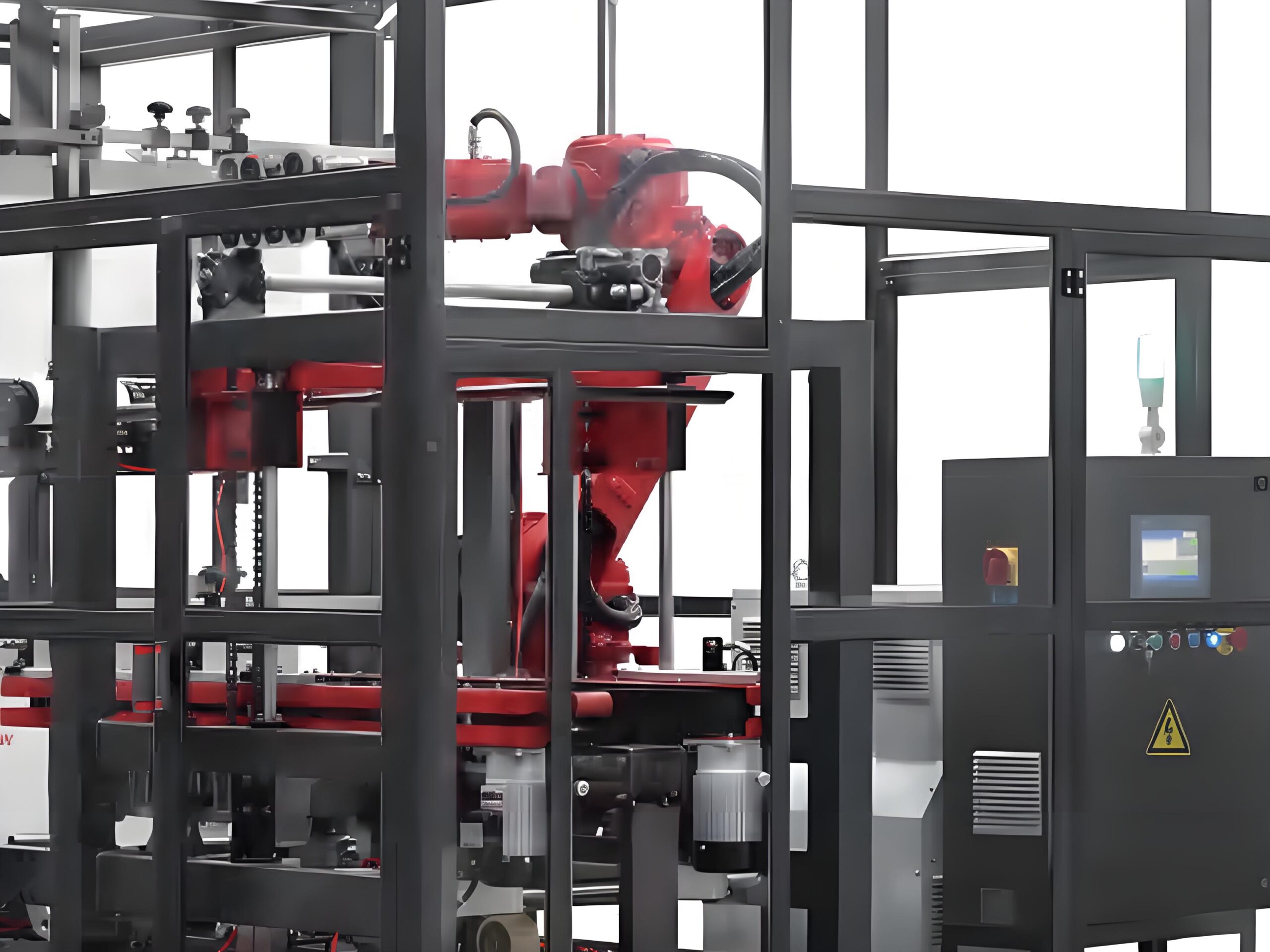

Intelligent Robot System: The Carton Forming Machine is equipped with a six-axis high-precision industrial robot featuring trajectory adaptation and force control functions, enabling stable handling of various cartons (including fragile and irregular ones) with a repeatability accuracy of ±0.3mm.

Vision Positioning Integration: Optional machine vision system for real-time recognition of carton positions and orientations, dynamically adjusting robot actions to achieve precise grasping and alignment of unordered incoming materials.

Wide-Range Size Compatibility: Through rapid CNC adjustments, the Case Forming Machine adapts to carton lengths of 300–800mm, widths of 200–600mm, and heights of 150–550mm, covering most medium to large packaging specifications.

Flexible Production Support: The Case Erector And Packer supports production task queue management, allowing switching of production instructions for cartons of different sizes without stopping operations, adapting to small-batch, multi-batch mixed production modes.
