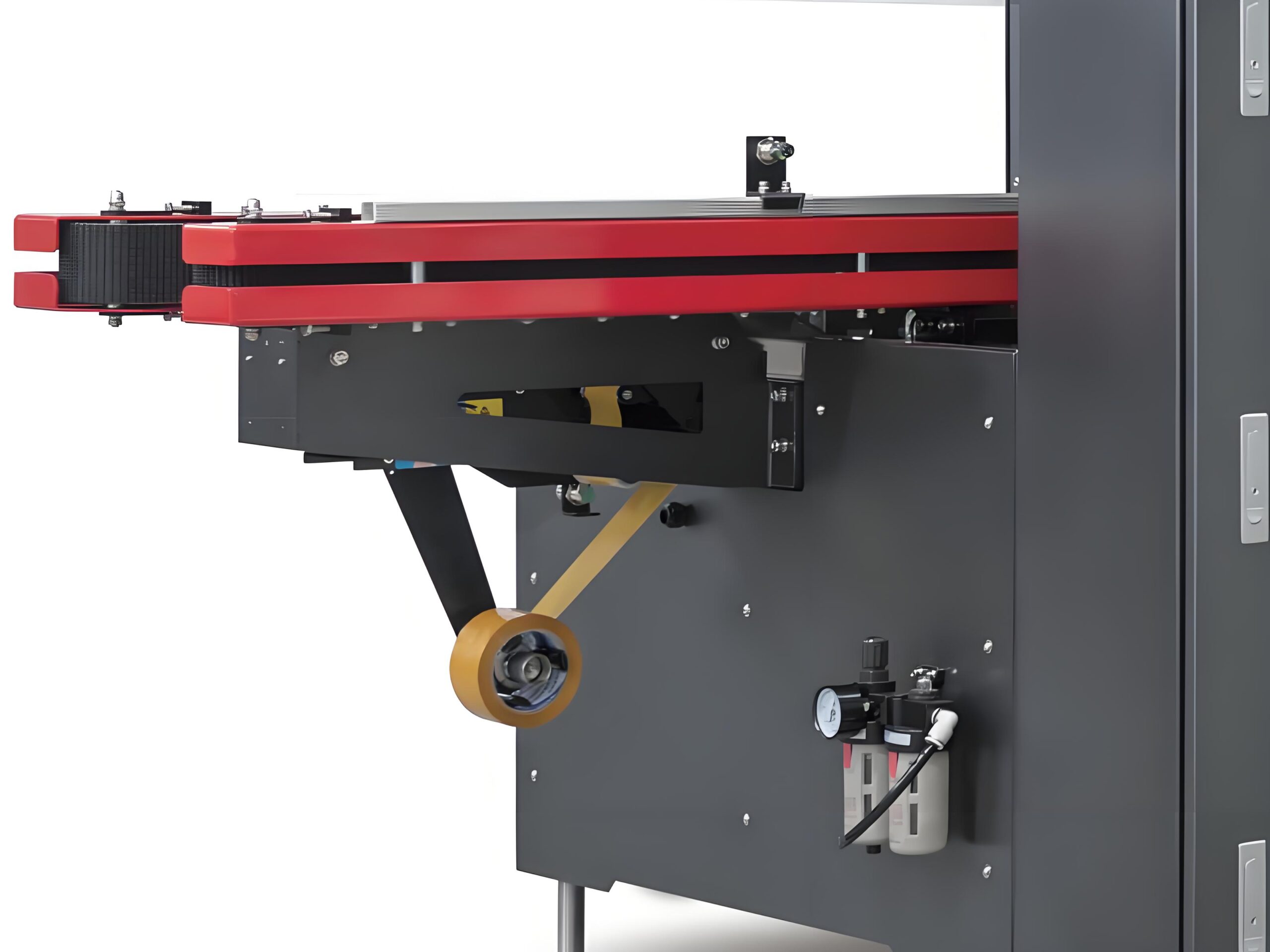

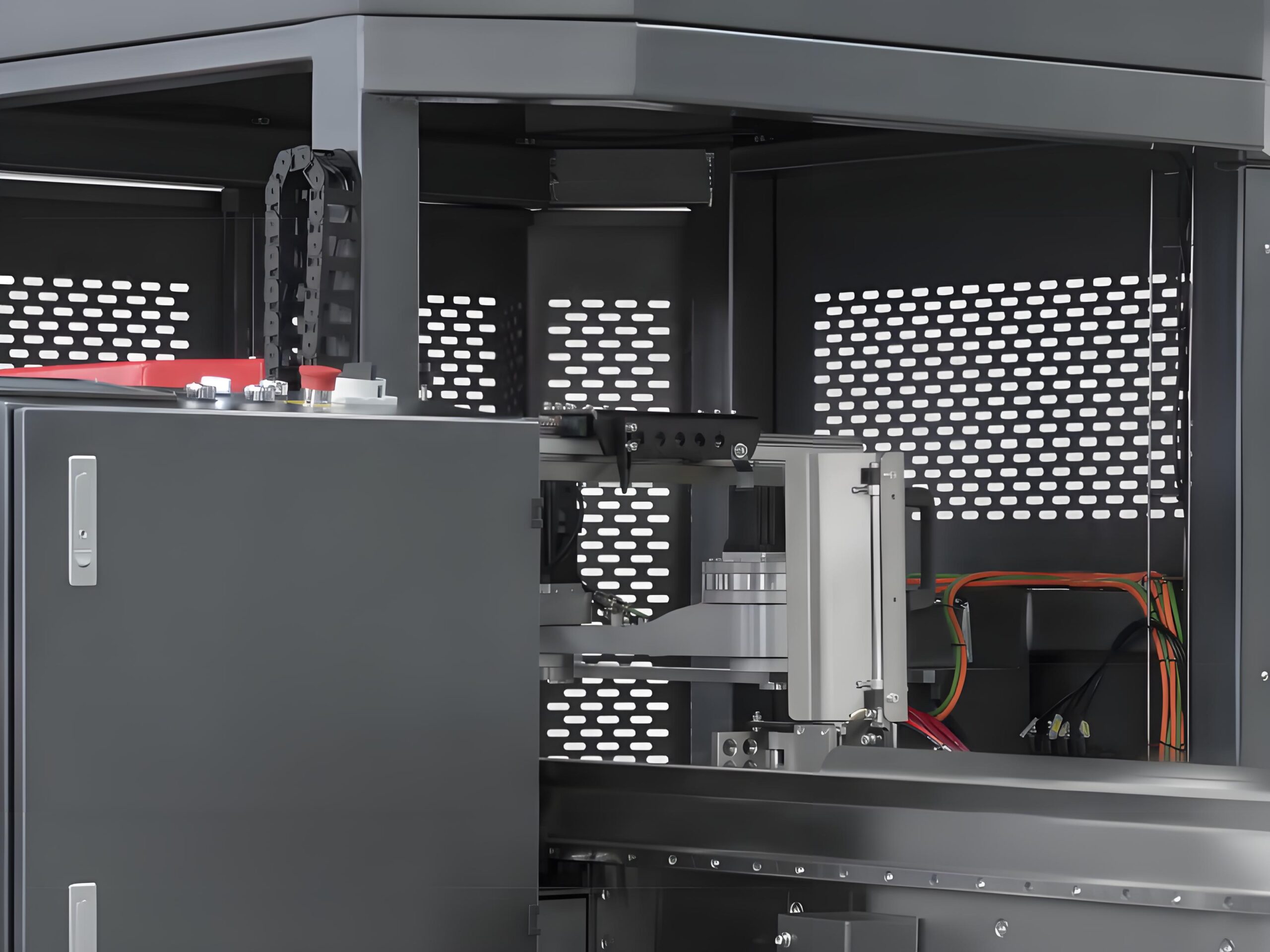

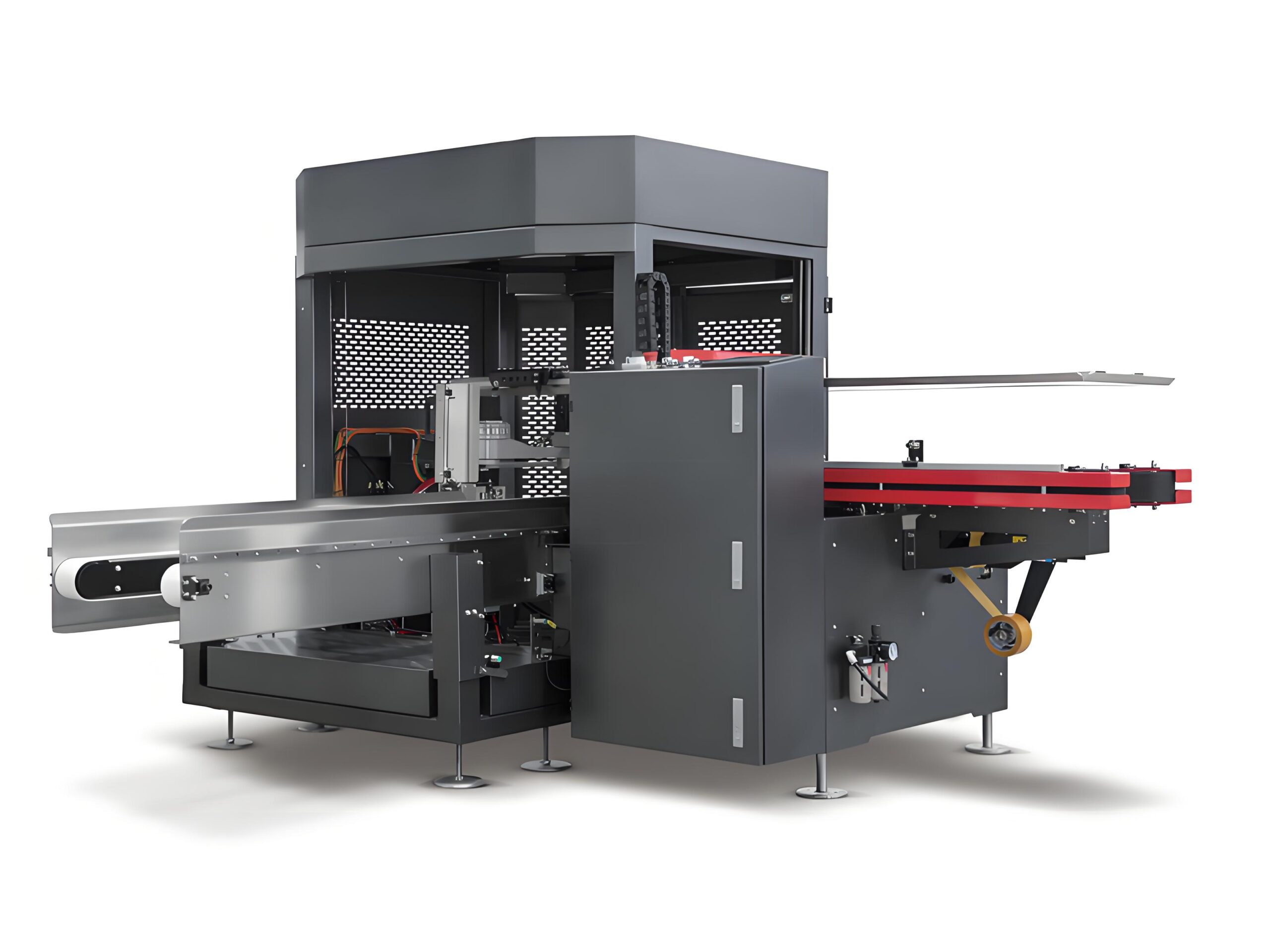

One-Click Robot Carton Erector

Get Latest Price

Contact Now

Product Description

The One-Click Robot Carton Erector delivers high efficiency and full automation. Equipped with a six-axis or four-axis robotic arm paired with a servo system, it enables flexible grabbing, intelligent positioning and high-speed forming. Ideal for large-scale production lines demanding high packaging precision and efficiency.

Features of Case Forming Machine

Flexible Robotic Operation: Equipped with high-precision industrial robotic arms, the High-Speed Case Carton Erector supports multi-angle grasping and placement, enabling stable handling of irregular or fragile cartons. It can integrate with vision systems for dynamic correction and precise positioning of carton locations.

Fully Automated Intelligent Process: Automatically completes feeding, robotic carton pickup, box forming, bottom folding, tape sealing, and finished product output, enabling fully unmanned operation.

High-Speed and High-Precision Production: Standard carton processing speed reaches 20–30 boxes per minute, with repeat positioning accuracy of ±0.5mm, ensuring consistent packaging quality.

Wide Adaptability: The Carton Forming Machine allows rapid adjustment of robotic arm trajectories and parameters via touchscreen, accommodating various carton sizes (length: 300–800mm, width: 200–600mm, height: 150–500mm). It supports tape widths of 48–72mm, including transparent, kraft paper, and printed tapes.

Stable and Energy-Efficient: Utilizes a servo system, requiring only 0.6–0.8MPa air source pressure, with low energy consumption and stable operation, capable of 24-hour continuous operation.

Parameters of Erector Machine

Power Supply: 1P 220V 50Hz, power 4.6KW

Air Source Pressure: 0.6–0.8 MPa

Dimensions: 2710×2480×2180 mm (L×W×H)

Machine Weight: Approximately 1000 kg

Applicable Tape Width: 48–72 mm

Operating Speed: 20–30 boxes/minute (standard cartons)

Advantages of Automatic Carton Erector

High Flexibility: The robotic arm adapts to cartons of various specifications and shapes without frequent mold changes.

Intelligent Integration: Supports MES/ERP data connectivity for remote monitoring of production status.

Easy Maintenance: Modular robotic arm units with clear fault diagnosis system prompts, reducing downtime.

Safety Protection: High Speed Case Erector And Packer Equipped with light curtains, emergency stop devices, and isolation barriers, compliant with CE safety standards.
