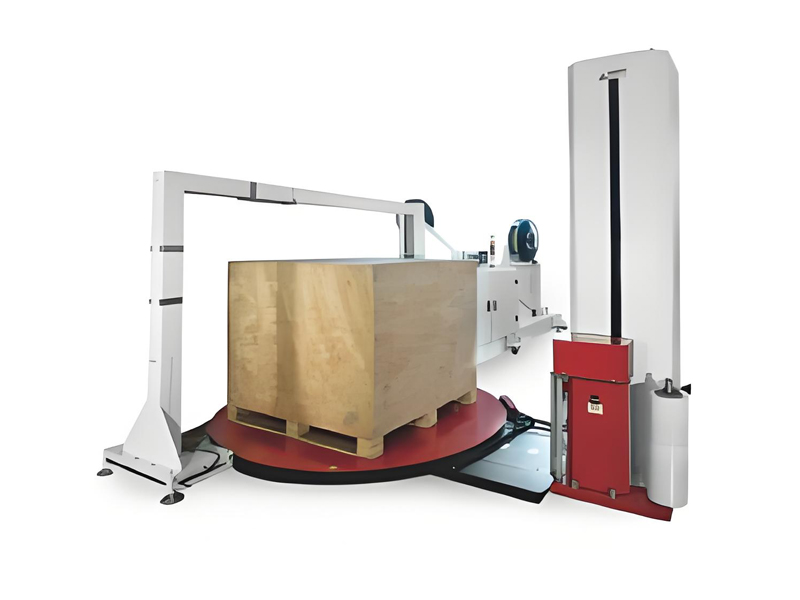

Integrated Pallet Wrap and Strap Machine can sequentially complete the full circumferential wrapping and top/middle strapping reinforcement of palletized goods at the same station, achieving a higher-strength integrated packaging effect. Packaging Line Stretch Wrapper especially suitable for heavy goods that are prone to collapse, stacked high, or subject to demanding transportation conditions.
Parameters of Stretch Wrap Machine:
Arch frame size: W1800*H1450mm
Turntable diameter: Φ1800mm
Applicable pallet: L(900-1200)*W(900-1200)*H(900-1450)mm
Applicable strap width: 12*1619mm
Bonding method: Electric heat sealing
Strap reel inner diameter: 406mm
Turntable height: 90mm
Power supply voltage: 380V3PH
Power consumption: 4.25KW
Features of Pallet Wrapper:
The Pallet Wrapping Machine enables automatic wrapping and strapping functions for pallets;
The Cargo Wrapping Machine achieves automatic wrapping and cross-strapping of pallets, eliminating the need for complex pallet conveying systems and saving significant floor space and procurement costs.
