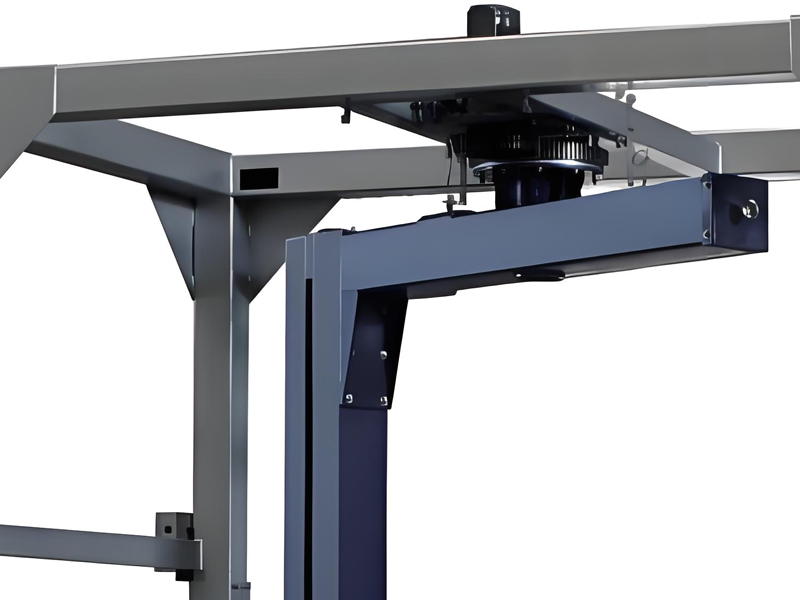

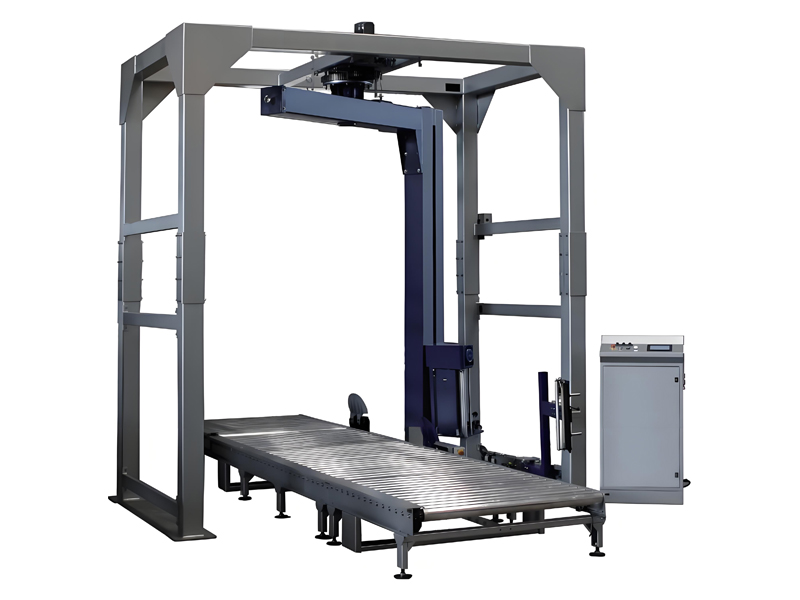

Conveyorized In-Line Stretch Wrapper

Get Latest Price

Contact Now

Product Description

Stretch Wrap Machine Technical Specifications and Performance Description of Conveyor-type Pallet Wrapper

1. End of Line Pallet Wrapper Basic Parameter Configuration

Power Requirements: 3-phase AC 380V / 50Hz industrial power supply

Air Source Pressure: 0.6–0.8 MPa (requires a stable air supply system)

Rotation Speed: 0–22 rpm continuously adjustable, adaptable to different packaging cycle needs

2. EOL Stretch Wrapping Machine Core Structural Design

Rotary Platform Inner Diameter: Φ1700 mm, optimized for space utilization

Column Height: Standard 2400 mm, with optional customized heights of 2000/2700/3000/3200/3400 mm in tiered configurations

Effective Wrapping Height: Column height minus 400 mm (e.g., a 3400 mm column corresponds to a wrapping height of 3000 mm)

3. In-line Pallet Wrapper Packaging Material Compatibility

Compatible with LLDPE stretch film of width ≤500 mm and core outer diameter ≤Φ280 mm

Equipped with a tension adaptive system on the film carriage to ensure uniform wrapping

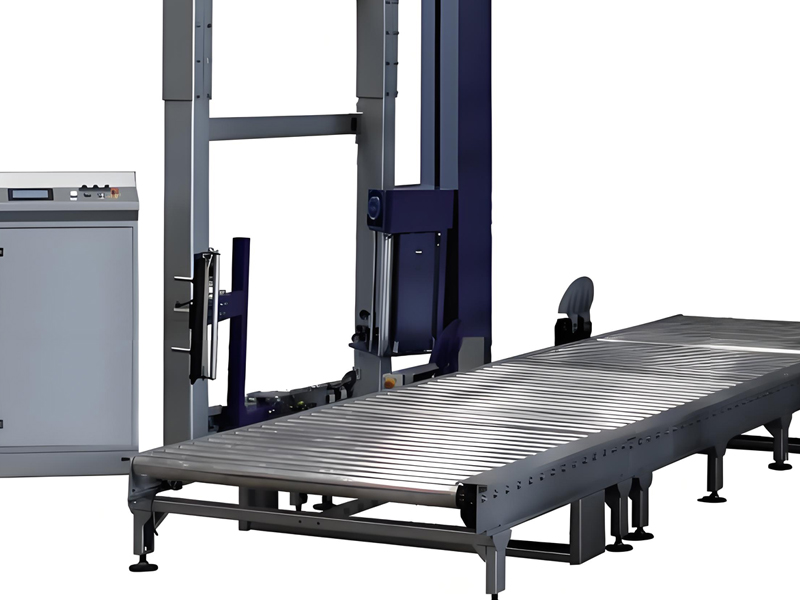

4. Automatic Stretch Pallet Wrapping Machine Conveyor Integration Features

Adopts a dual-mode transmission system (synchronous belt/roller) with a maximum load capacity of ≥2000 kg

Conveyor speed and rotation speed are synchronously controlled to achieve a "dynamic wrapping" process

Inlet and outlet ports can interface with automated logistics equipment such as AGVs and roller conveyors

5. Automatic Cargo Wrapping Machine Scenario Adaptability Advantages

Modular Structure: Column height and turntable size support combined customization, suitable for packaging irregularly shaped goods

Intelligent Linkage: Fully automatic "start-on-arrival" process enabled by PLC and photoelectric sensors

Energy Efficiency Optimization: Servo motor drive combined with pneumatic energy-saving mode reduces power consumption by 30% compared to traditional models

6. Typical Application Areas

Continuous packaging scenarios such as stacked building material panels, chemical barrel packaging, and standardized e-commerce cartons. Particularly suitable for direct integration at the end of production lines to form an integrated "production-packaging-conveying" solution.

(Additional detailed parameters such as safety protection level and human-machine interface configuration can be included based on actual requirements.)
