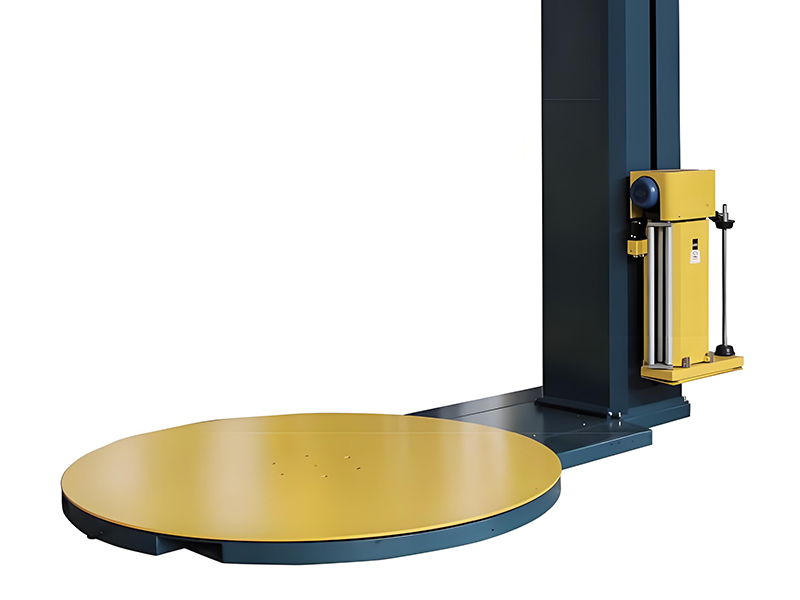

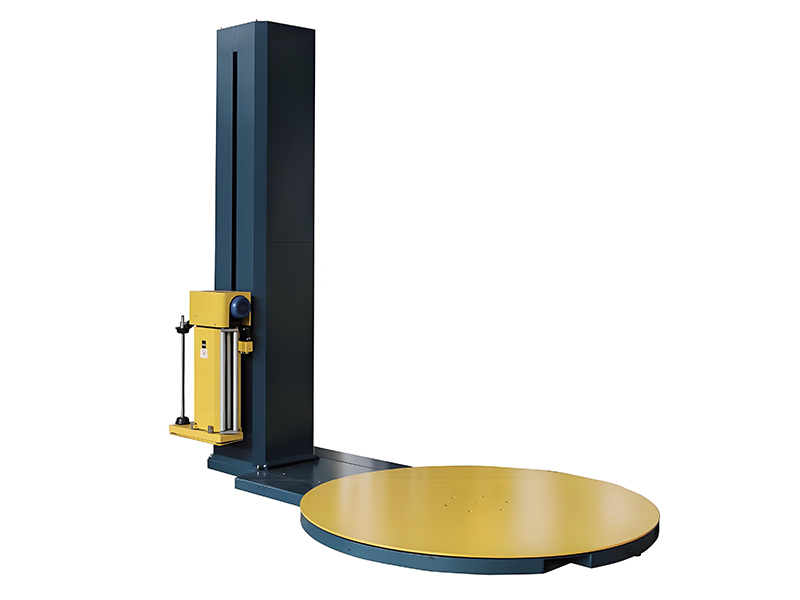

Rotary Turntable Stretch Wrapper

Get Latest Price

Contact Now

Product Description

Rotary Turntable Stretch Wrapper of this Pallet Wrapper can be flexibly adjusted within the range of 0–10 r/min. Whether handling lightweight, fragile precision components or heavy, bulky goods, the machine achieves uniform wrapping through adaptive speed control, Stretch Wrap Machine which not only ensures stable and reliable packaging quality but also maintains an efficient operational rhythm. With a maximum rated load capacity of 2000 kg, it easily meets the packaging requirements of various heavy-duty palletized goods, eliminating concerns over operational failures caused by overloading and making it suitable for most industrial palletizing scenarios.

In terms of packaging material compatibility, this Pallet Wrapping Machine is compatible with LLDPE stretch films with a width ≤ 500 mm and an outer diameter ≤ Φ280 mm. Boasting excellent tensile strength and toughness, LLDPE films, combined with the machine’s stable wrapping motion, form a tightly sealed protective layer. This provides comprehensive protection against moisture, dust, and abrasion for goods, effectively extending their shelf life during storage and transportation.

Wide Application & Customizable Configurations

Wuxi Chuansfo Intelligent Packaging provides customizable solutions to fit diverse pallet sizes and packaging needs—all dimensional parameters can be adjusted based on real-world working conditions.

Turntable Diameter

Standard size: Φ1500 mm. Optional sizes include Φ1650 mm, Φ1800 mm, Φ2000 mm, and Φ2200 mm. These options work with every pallet type, from standard models to large custom ones. You get steady rotation every time, no uneven wrapping from shifting.

Column Height

Standard height: 2400 mm. Custom heights available: 2000 mm, 2700 mm, 3000 mm, 3200 mm, and 3400 mm. Effective packaging height = column height minus 400 mm. For example, a 3400 mm column gives 3000 mm of effective height—pack low-stacked or high-stacked goods directly, no extra equipment or disassembly needed.

Our machine has a compact design, with standard dimensions of just 1500 × 2440 × 2475 mm. It takes up minimal workshop space, In-line Stretch Wrapper fitting easily even in tight packaging areas to boost space use. It runs on a standard 1P AC220V 50Hz power supply—no need for separate industrial high-voltage wiring. That simplifies installation and cuts electricity costs.

Stable, Reliable Performance & Cost-Effective Operation

Featuring an integrated modular design, the machine delivers stable and reliable operation with a low failure rate. Daily maintenance only involves routine inspection and lubrication of key components such as the turntable and film feeding mechanism, End of Line Pallet Wrapper eliminating the need for a professional maintenance team and effectively reducing equipment upkeep costs.

Compared with manual wrapping, this machine enables fully automated operation. A single unit can replace the workload of 2–3 workers, which not only significantly reduces labor intensity but also boosts packaging efficiency by 3–5 times. Meanwhile, automated wrapping ensures consistent packaging quality for every pallet, avoiding problems like loose wrapping and uneven film layers that are common in manual operations. This minimizes product damage caused by substandard packaging, providing strong support for enterprises to achieve cost reduction and efficiency improvement. The machine is widely suitable for palletized packaging needs across various industries, including food and beverage, Cargo Wrapping Machine building materials and chemicals, e-commerce warehousing, and hardware machinery.
