Product Description

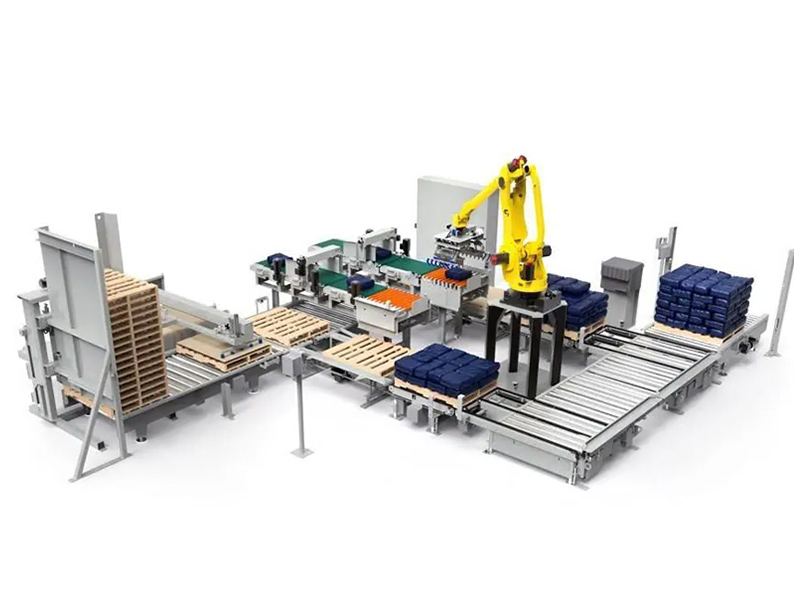

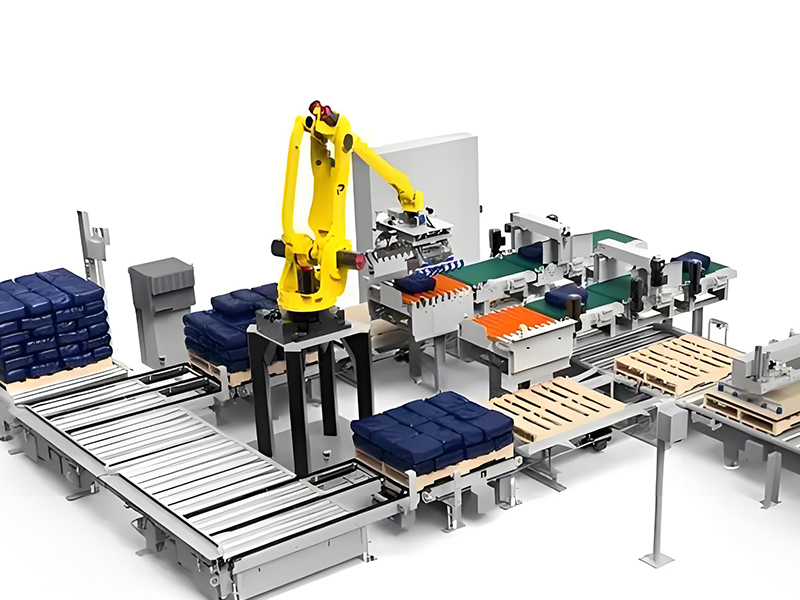

The high-speed robotic palletizing unit is an all-in-one automated piece of equipment built specifically for high-capacity production lines. It integrates the robot body, conveying system, fixture device, control system and safety protection components into a cohesive whole, enabling fast, precise grasping, positioning and stacking of regular materials such as cartons, bagged goods, cans and turnover boxes.
Palletizing Robot Its biggest advantage is solving the long-standing problem of low efficiency with traditional palletizing equipment. Capable of handling over 10 cycles per minute to meet high-frequency operation needs, it is widely used in industries with stringent capacity requirements—including food and beverage, daily chemicals, pharmaceuticals and e-commerce logistics. Customizable High-Speed Robotic Palletizer Cell
It significantly boosts packaging efficiency at the end of production lines while cutting labor costs substantially.
I. Core System Composition
High-Speed Robot Body
As the core executing component, it mostly adopts a four-axis or six-axis lightweight yet high-rigidity structure, equipped with a high-performance servo drive system and precision reducers. The body is manufactured via integrated aluminum alloy casting, with joint response speed increased by over 30% compared to conventional palletizing robots, enabling rapid start-stop and continuous high-frequency movements. Some models tailored for ultra-high-speed scenarios also feature a "parallelogram" arm structure, which further reduces motion inertia while maintaining load capacity.
This system incorporates feeding/buffer conveyors, a pallet feeder, and a finished product output conveyor. The feeding end is equipped with photoelectric sensors and a visual positioning module that detect the position and status of materials in real time. The servo motor-driven conveyor belt adjusts material spacing to ensure the robot never waits for grasping tasks. Featuring an automatic lifting structure, the pallet feeder achieves a pallet placement accuracy of ±2 mm.
Quick-Change Fixtures
Custom-designed based on product material properties, common types include vacuum suction cup fixtures , mechanical grippers, and magnetic fixtures. Industrial Palletizing Robot The fixtures are equipped with quick-change interfaces, and paired with the robot end-effector recognition system, they allow fixture switching for different materials within 30 seconds. Meanwhile, Smart High-Speed Robot Palletizing Machine Cell these fixtures are made of lightweight materials such as carbon fiber composites to reduce robot load loss and boost movement speed.
Integrated Control System
With a PLC as its core, paired with an industrial touch screen and dedicated palletizing control software, it supports multi-task parallel processing. The system comes with over 100 built-in standardized palletizing modes , and custom stacking patterns can be quickly edited via a drag-and-drop interface. It also features data interaction capabilities with the MES and ERP systems of upstream production lines, enabling intelligent management functions including production capacity statistics, fault early warning, and order traceability.
Full-Dimensional Safety Protection
It adopts a dual protection design consisting of double-layer safety fences and grating sensors. The fence height is no less than 1.8 meters, and the grating response time is ≤10 ms. Robotic Palletizer When personnel or foreign objects enter the operation area, the system can trigger an emergency stop of the robot within 100 ms. Additionally, it is equipped with detailed protective components such as fixture anti-falling devices and pallet anti-toppling sensors to ensure the safety of both personnel and equipment during high-speed operations.
II. Core Advantages: Dual Strengths of High Speed and Precision
1. Ultra-High Operational Efficiency, Adapting to High-Capacity Demands
Through lightweight joint design of the robot, high dynamic response of the servo system, and coordinated control of the conveying line, the unit can achieve a maximum palletizing capacity of 1,200–2,000 cycles per hour. Some specialized units for small-sized materials can even exceed 2,500 cycles per hour. Taking bottled water production lines in the food and beverage industry as an example, one set of high-speed palletizing unit can support two filling lines with a capacity of 600 bottles per minute, improving efficiency by 6–10 times compared to traditional manual palletizing and completely resolving the "palletizing bottleneck" issue of high-capacity production lines.
2. High-Precision Positioning, Ensuring Stable Palletizing Quality
The unit boasts a repeat positioning accuracy of ±0.1–0.3 mm. Through visual positioning and robot motion compensation algorithms, Robotic Palletizer it can real-time correct the grasping position even if materials shift slightly during conveying. During stacking, it adopts the "layer-by-layer compaction" technology: after each layer of materials is stacked, the fixture performs slight pressing to ensure the stack height error is ≤5 mm. Stack stability is improved by over 40% compared to manual stacking, effectively reducing the material damage rate during warehousing and transportation.
3. High Automation and Flexibility, Adapting to Multi-Variety Production
It supports the production demand of "multi-variety, small-batch" manufacturing. By quickly switching palletizing programs and fixtures via the control system, production changeover from cartons to bagged goods, or from large to small-sized materials can be completed within 1 minute. High-Speed Robotic Palletizer Cell for Food Packaging It can handle three specifications of bottled cartons (1L, 2L, 5L) simultaneously without manual adjustment of mechanical structures. High-Speed Palletizer Some high-end units are also equipped with an AI visual recognition system, which can automatically identify material specifications and match corresponding stacking patterns to achieve "program-free changeover".
III. Application Scope
Food and Beverage Industry
Suitable for production lines of bottled water, carbonated drinks, instant noodles, frozen food, etc.
Daily Chemical and Pharmaceutical Industries
Handles bottled/boxed materials such as shampoo, laundry detergent, and cosmetics, as well as infusion bottle cartons and capsule board packages in the pharmaceutical industry. It meets the strict GMP compliance requirements of the pharmaceutical sector.
E-Commerce and Logistics Industry
Applied in sorting centers and warehousing & distribution centers to process various specifications of express packages and e-commerce cartons. The AI visual recognition system automatically distinguishes packages of different sizes and matches optimized stacking patterns. Combined with AGVs for automatic pallet transfer, High-Speed Robotic Palletizer Cell it realizes full-process automation of "sorting-palletizing-warehousing".
