Product Description

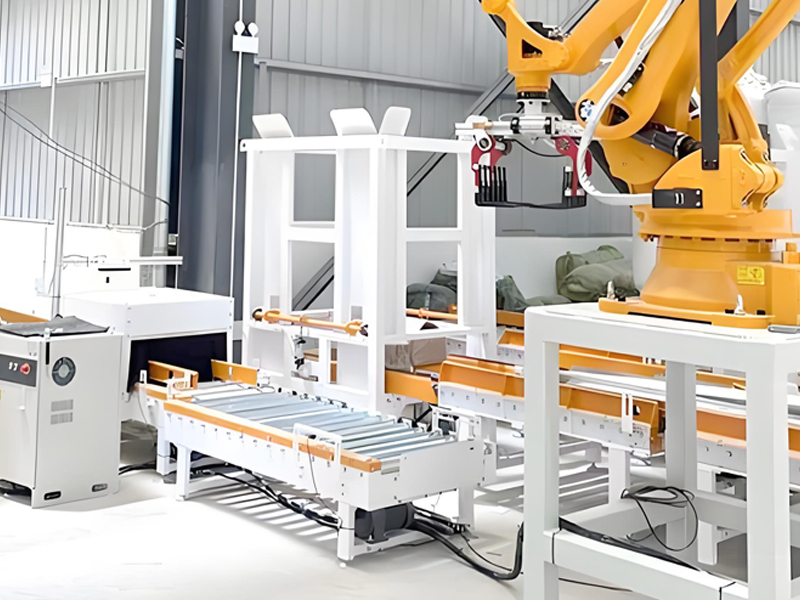

The Automatic Palletizing Robot System features high efficiency, flexibility, precision, and low energy consumption, enabling seamless integration with production lines, conveyor systems, and warehouse management systems. It can be used in the packaging and warehousing stages of industries such as food and beverages, chemicals, pharmaceuticals, grain and feed, building materials, and logistics. Palletizing Robot are suitable for automated handling and stacking of regular packaging units such as cartons, bags, barrels, and boxes.
Configuration Parameters of Industrial Palletizing Robot
Number of Axes: 4 axes
Body Weight: 1500 kg
Body Rated Load: 165 kg
Maximum Working Radius: 315 cm
Repeat Positioning Accuracy: ±2 mm
Protection Rating: IP54
Installation Method: Floor-mounted
Humidity: 20% — 80% RH (no frost)
Vibration: Below 4.9 m/s²
Motion Range of Each Axis
J1 Axis: ±180°
J2 Axis: +5° - +130°
J3 Axis: ±15° — -60°
J4 Axis: ±360°
Maximum Speed of Each Axis
J1 Axis: 70°/s
J2 Axis: 82°/s
J3 Axis: 82°/s
J4 Axis: 200°/s
Features of Robot Palletizing Machin
With an ultra-large load capacity of 165 kg and a working radius of 3150 mm, it delivers robust, reliable, and stable performance.
Robotic Palletizer adopts a high-configuration power combination and lightweight body design.
High-Speed Palletizer features a simple structure, easy maintenance, and greater cost-effectiveness.
Automatic Case Palletizer operates at high speed with stability and precise path control, capable of handling various palletizing schemes.
Effectively improves enterprise production efficiency and relieves personnel from high-intensity workloads.
