Product Description

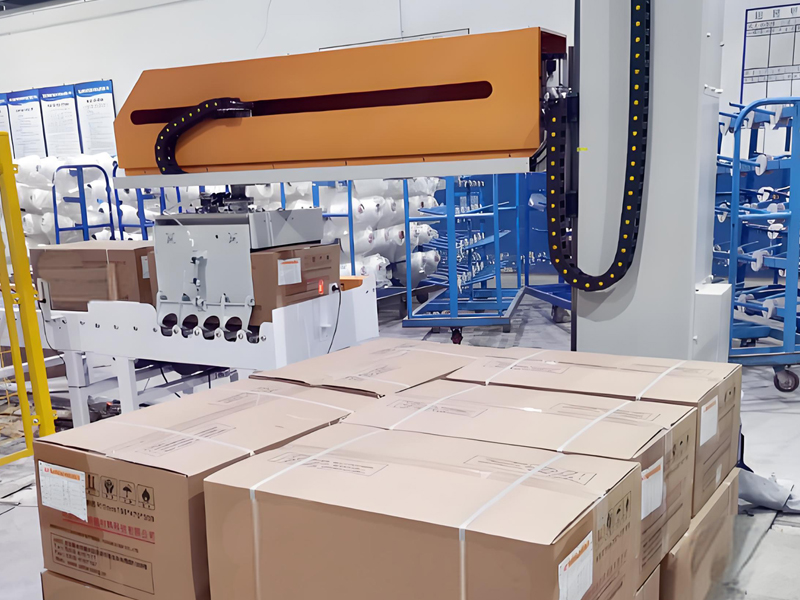

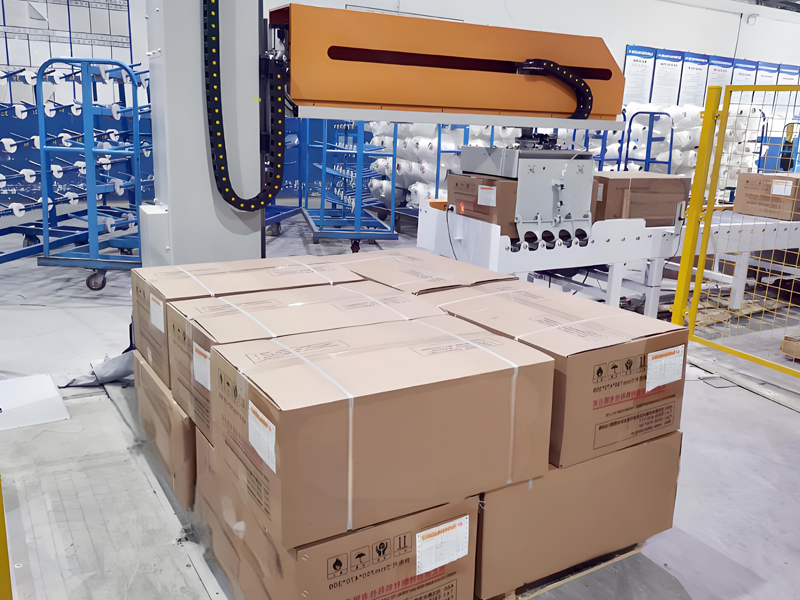

The Automatic Case Palletizing Machine offers strong load capacity, high positioning accuracy, smooth motion, and flexible programming. It is widely used in the finished packaging stages of industries such as food, beverages, chemicals, grains and oils, feed, and building materials, achieving efficient, neat, and stable stacking on pallets. Palletizing Robot are suitable for automated handling and stacking operations of regular packaging units such as cartons and soft bags.
Technical Parameters of Industrial Palletizing Robot
Equipment Purpose: Handling, Palletizing
Maximum Load: 100 kg
Positioning Accuracy: 0.2 mm
Power Supply: AC380V ±10%, 50Hz ±2%, Three-Phase Four-Wire System
Compressed Air: ≤0.7 MPa (operating pressure not lower than 0.6 MPa)
Total Equipment Height: Approximately 3.4 m
Rotation Coverage Radius: 2.3 m
Repeat Positioning Horizontal Angular Accuracy: ±1°
Applicable Objects: Regular packaging items such as cartons and soft bags
Custom Processing: Supported
Features of Robot Palletizing Machine
High load capacity and precision
Robotic Palletizer maximum load: 100kg, repeat positioning accuracy: 0.2mm, meeting the requirements for heavy cartons and high-density stacking.
Wide coverage range
Rotation radius: 2.3m, overall height: approximately 3.4m, adaptable to various pallet layouts and stacking heights.
Intelligent control
High-Speed Palletizer adopts PLC + robot control system, supports preset stacking patterns and one-key switching, adaptable to multi-variety production.
Stable and reliable
Electrical and pneumatic components use high-quality materials, with self-diagnosis and safety interlock functions.
Flexible adaptation
Case Palletizing Equipment can be customized based on product size, pallet specifications, and production line rhythm, supporting integration with conveyors, stretch wrappers, and other equipment.
Easy to operate
User-friendly interface, supports touchscreen operation, fault alerts, production statistics, and remote monitoring functions.
