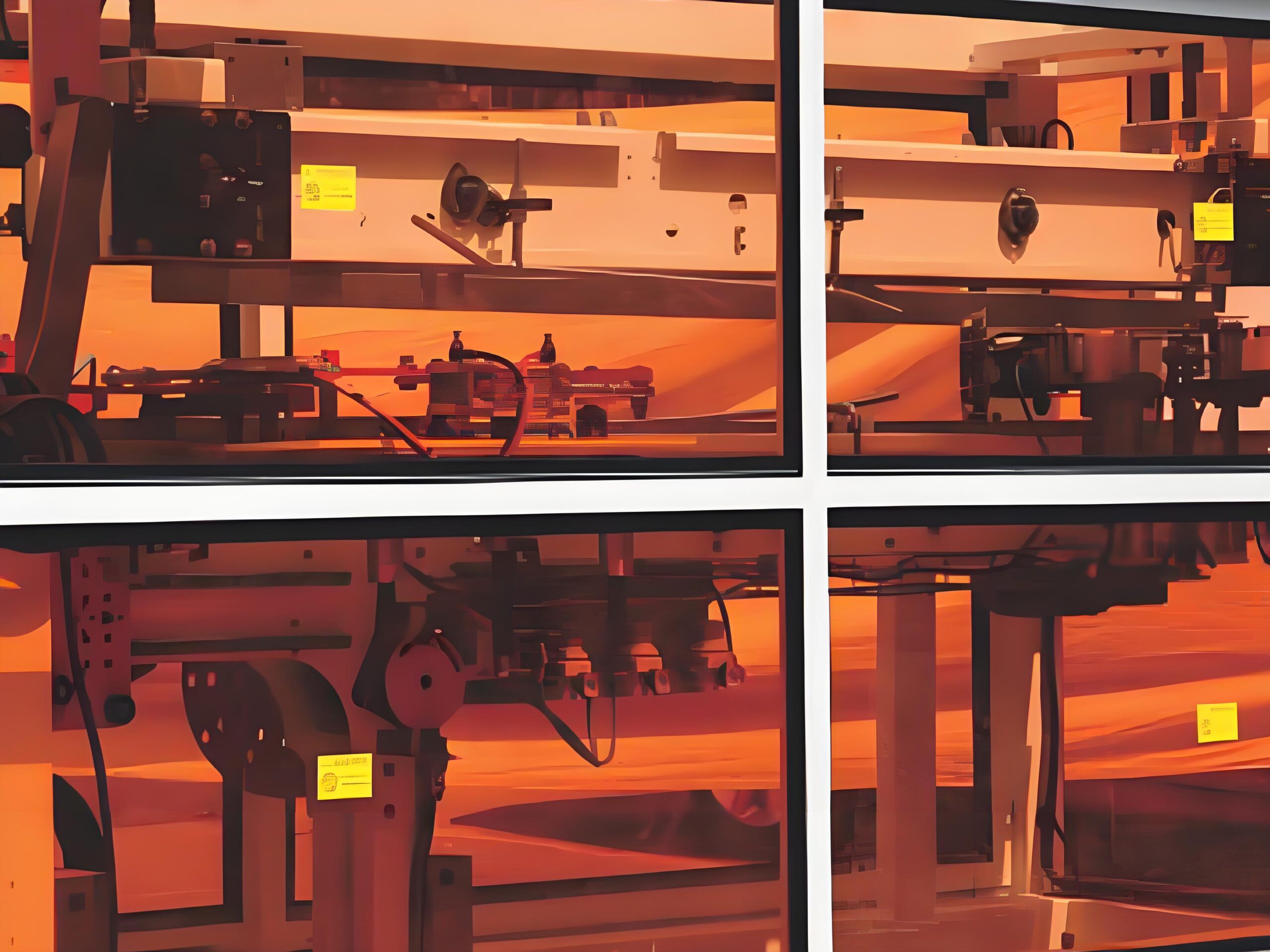

Automatic High-Speed Case Erector

Get Latest Price

Contact Now

Product Description

The Automatic High-Speed Case Erector can quickly and accurately complete the entire process of suction, forming, bottom folding, and sealing of cartons, significantly improving packaging efficiency and stability. It is widely applicable to industries such as food, beverage, pharmaceuticals, daily chemicals, electronics, and e-commerce logistics, meeting the demands of large-scale, high-tempo packaging operations.

Technical Parameters of Carton Erector

Applicable Power Supply: 3P AC380V, 50Hz, 2.5KW

Compressed Air Pressure: 0.4–0.6 MPa

Air Consumption: 30 m³/h

External Dimensions: L3500 × W1500 × H2200 mm

Adjustment Range:

Width W: 190–280 mm

Length + Width (L+W): 400–690 mm

1/2 Width + Height (1/2W+H): 220–420 mm(Customizable)

Table Height: 1000 mm ± 50 mm

Machine Weight: 2000 kg

Operating Speed: 35, 40, 45, 50 cases/minute (configurable based on model selection)

Forming and Sealing Method: Bottom sealing with adhesive tape, suitable for laminated cartons, oil-coated cartons, etc.

Tape Width: 48–72 mm

Applicable Carton Specifications: Customer must provide a list of carton specifications

Unpacking Method: Vacuum suction cups + side-push forming mechanism

Features of Carton Forming Machine

High-Speed and High Efficiency: Up to 50 cases/minute, suitable for high-speed production lines, stable and reliable;

Precise Forming: Utilizes servo drive and vacuum suction cups with side-push forming mechanism, ensuring cartons are formed squarely and without tilting;

Strong Adaptability: High Speed Case Forming Machine supports various surface treatments such as lamination and oil coating, ensuring firm sealing and resistance to adhesive failure;

Ergonomic Design: Adjustable table height conforms to manual carton placement habits, reducing labor intensity;

Easy Adjustment: Wide range for model changeover, quick switching of carton specifications via touchscreen parameter settings;

Sturdy Structure: Custom Automatic Case Erector weighs 2000kg, operates smoothly with low noise, suitable for long-term continuous operation;

Intelligent Control: PLC integrated control, featuring self-diagnosis for faults, counting statistics, speed adjustment, and other functions;

Customizable and Expandable: Case Forming Machine supports non-standard size customization and can be integrated with packing machines, weighing labelers, etc., to form a fully automated packaging line.
