Product Description

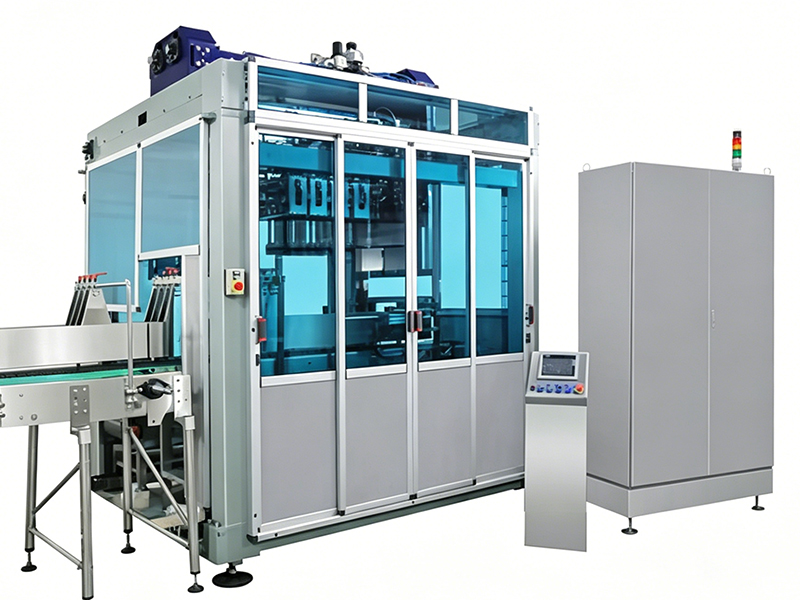

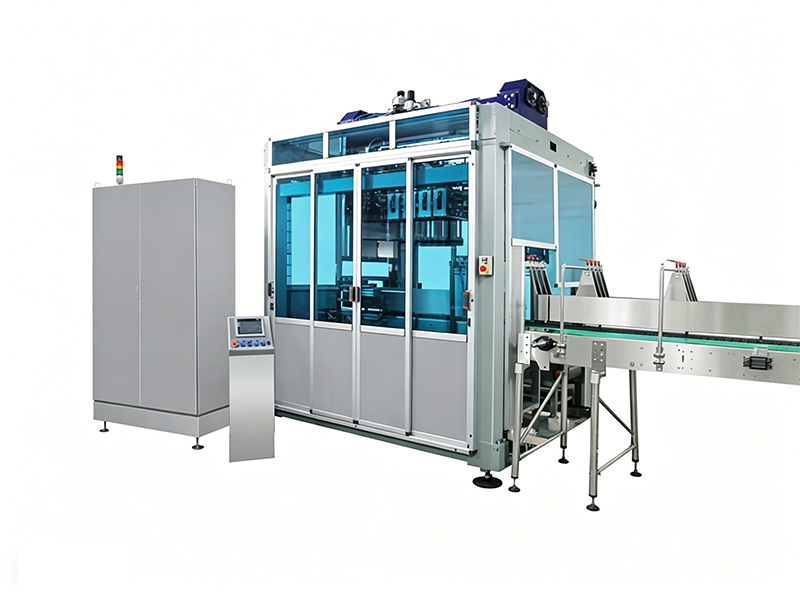

Case Packer is an automated packaging device integrating precise gripping, smooth, and efficient packing. The Carton Sealing Machine can seamlessly connect with front-end production equipment and back-end carton sealing and palletizing processes, achieving fully automated operation from product conveying to packing, greatly improving packaging efficiency and reducing labor costs. It is suitable for many industries such as food, beverage, daily chemicals, and pharmaceuticals.
Case Packing Technical Parameters
Model Power Supply Power Air Source Pressure Air Consumption Working Speed Number of Grippers
CSF-15T AC380V 50Hz 7-10kW 0.6-0.8MPa 20-40m³/h 12-15 boxes/min 1-3 grippers
CSF-30T AC380V 50Hz 10-12kW 0.6-0.8MPa 30-40m³/h 20-30 boxes/min 4-6 grippers
CSF-60T AC380V 50Hz 12-15kW 0.6-0.8MPa 30-60m³/h 40-55 boxes/min 8-12 grippers
Performance Advantages
Precise and Efficient, Wide Application Range
Robotic Case Packer Adopts high-precision translation drive mechanism and three-stage pressure reduction bottle gripping technology, ensuring precise gripping positioning, basically eliminating bottle tipping and missed gripping issues, with a bottle gripping success rate of over 99%; High-Speed Carton Sealer multiple models adapt to different production capacity requirements, with 15T/30T/60T models covering packing speeds of 12-55 boxes/min, meeting diverse production needs from small to large batches, suitable for various regular product shapes such as bottles and boxes.
Stable Operation, Long Service Life
Automatic Case Sealer features low impact, low vibration, coordinated and smooth movement during operation, and low operating noise; the combination of core pneumatic components and precision transmission structure is lubrication-free and maintenance-free, with long service life. At the same time, the optimized no-load return design greatly reduces non-working time, comprehensively improving the effective operating efficiency of the equipment.
Intelligent and Safe, Low Operating Cost
Equipped with PLC + touch screen intelligent control system, supporting one-key parameter adjustment, real-time fault alarm and self-diagnosis, easy and intuitive to operate; Automated Case Packer multiple safety protection mechanisms, including automatic stop for incomplete boxes/bottles, gripper misalignment protection, and safety isolation line stop, ensuring comprehensive protection of personnel and equipment; modular structural design, few wearing parts, low maintenance cost, and fast and efficient changeover in later stages.
Flexible Adaptability, Wide Compatibility
Carton Packaging Machine Can operate independently as a single machine or seamlessly connect with front-end fillers, labelers, and back-end carton sealers and palletizers. Random Size Case Sealer adapts to the entire process of automated production lines; grippers can be flexibly replaced according to product specifications, compatible with various bottle types such as round bottles and square bottles, meeting the packaging needs of different industries' products, suitable for various carton specifications including standard boxes and irregular boxes.
