Product Description

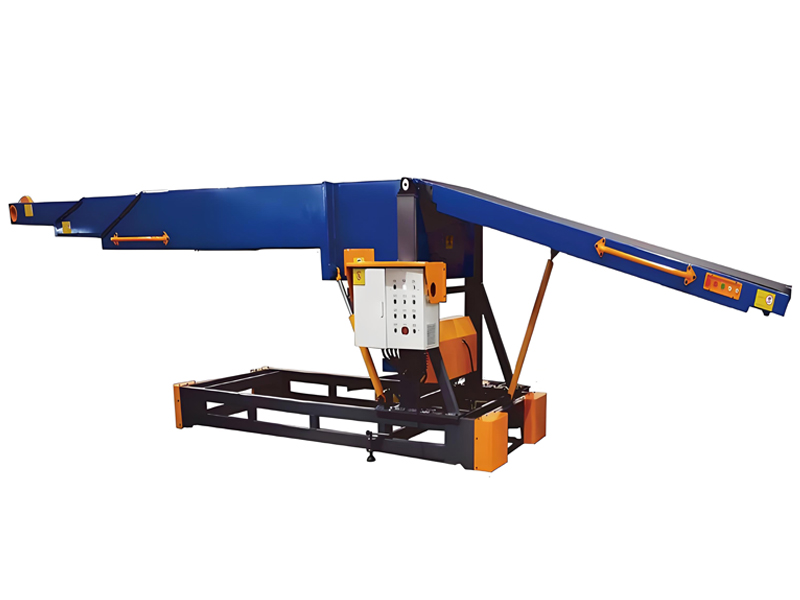

Telescopic Belt Conveyor Adopts modular telescopic mechanisms and variable frequency drive technology, allowing flexible adjustment of conveying length and operating speed based on operational requirements, achieving automated and efficient material conveying over variable distances.
Telescopic Conveyor System Dynamic Telescoping Capability
Adjustable Range: Telescopic stroke of 8–30 meters, covering most operational scenarios.

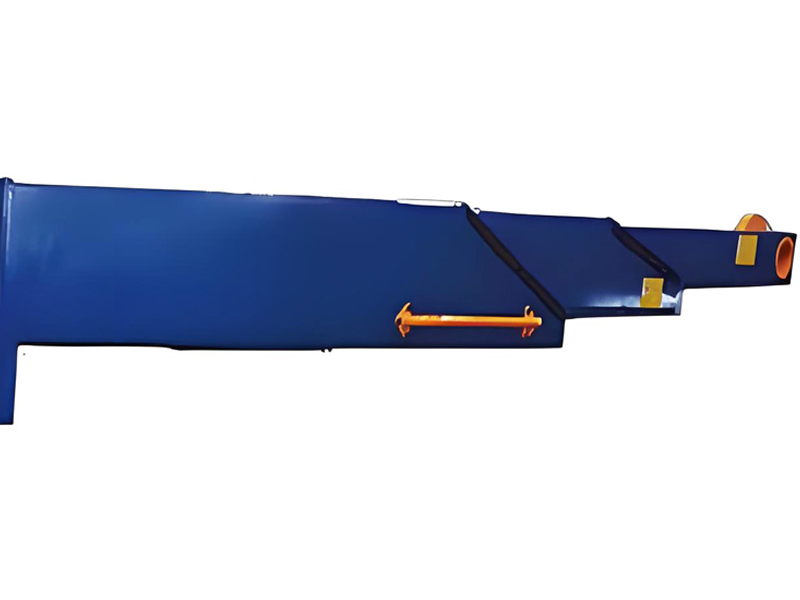

Telescoping Method: Extendable Belt Conveyor utilizes multi-section modular design with a telescopic ratio of up to 1:4.
Control Accuracy: Telescopic positioning error ≤ ±10 mm.
Telescoping Speed: Adjustable from 0–5 meters per minute.
Telescopic Conveyor For Packaging Power System
Drive Configuration: Optional head, center, or dual drive.
Power Source: Combination of variable frequency motor and gear reducer.
Power Range: 5.5–37 kW, adaptable to different conveying requirements.
Speed Adjustment: Steplessly adjustable from 0–30 meters per minute.
Technical Specifications of Fixed Telescopic Belt Conveyor
Conveying Length Specifications:
Base Length: 6-12 meters
Maximum Extension Distance: 30 meters
Conveyor Belt Specifications:
Optional Widths: 500/650/800/1000/1200 mm
Operating Parameters:
Conveying Speed: 0.5-30 meters per minute (continuously adjustable)
Operating Inclination: Horizontal or up to 15 degrees
Conveying Capacity: Up to 3000 kg per hour
Electrical Parameters:
Power Requirements: Three-phase 380V/50Hz
Power Configuration: Supports customized solutions
Environmental Adaptability:
Operating Temperature: -20°C to +50°C
Operating Noise: Not exceeding 70 dB
Strong Adaptability
Fixed Telescopic Belt Conveyor can adapt to conveying needs over different distances without requiring multiple fixed conveyors in series. It can quickly dock with work platforms of varying heights, enabling flexible layouts. It can handle various material forms, including bulk materials, bagged materials, and boxed materials.
