Product Description

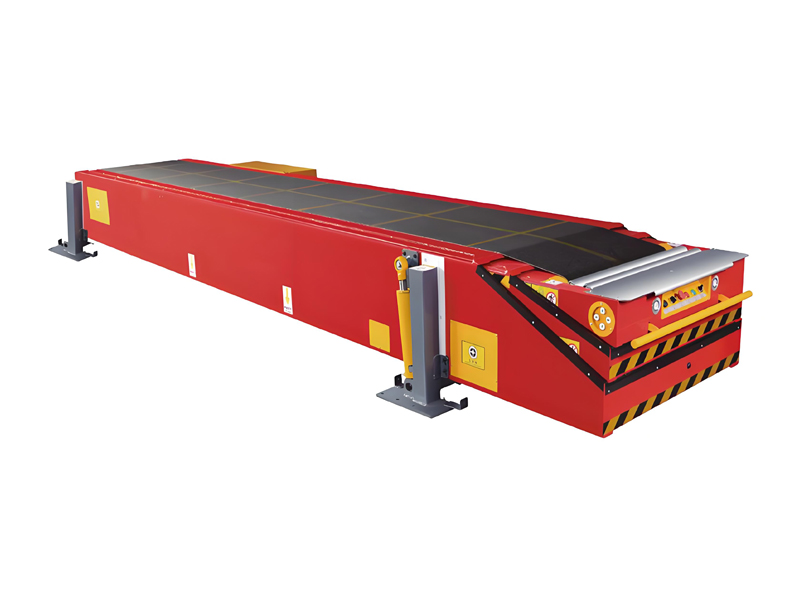

Lifting Telescopic Conveyor achieves precise three-dimensional material conveying through the coordinated operation of hydraulic/electric lifting systems and telescopic conveying mechanisms, effectively solving material transfer challenges between work surfaces at different heights.
System Composition
The telescopic conveying module adopts high-strength aluminum alloy profiles or steel structure frames, equipped with electric roller or belt drive systems. The standard telescopic stroke ranges from 6 to 18 meters, with a maximum customizable length of up to 30 meters. It supports three operation modes: wireless remote control, wired control, and automated program control.

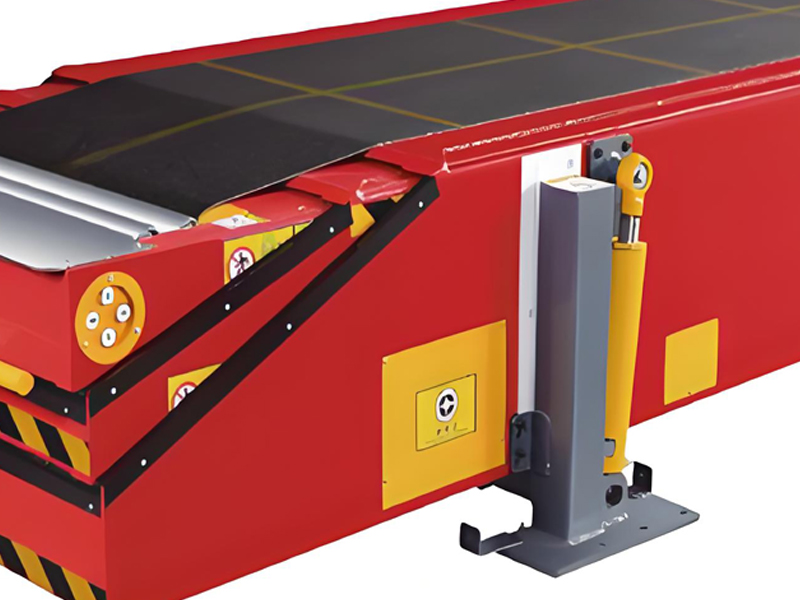

Telescopic Belt ConveyorCan provide lifting methods such as hydraulic cylinders, electric screw rods, or scissor lifts.
Telescopic Conveyor System Lifting Height: 1.5–3.5 meters, up to a maximum of 6 meters.Load Capacity: 500–2000 kg, with height repeat positioning accuracy of ±2 mm.
The intelligent control system is centered around a PLC and equipped with a touchscreen human-machine interface. It features emergency stop protection, anti-collision devices, and overload protection functions. Integrated position, weight, and tilt sensors support industrial communication protocols such as PROFINET and Ethernet/IP.
Lifting Telescopic Belt Conveyor The auxiliary function module includes laser or ultrasonic automatic alignment systems, anti-deviation correction devices, belt automatic cleaning mechanisms, and LED operational lighting systems, ensuring stable operation under various working conditions.
Application Scenarios
In the logistics and warehousing sector, it is widely used for truck loading and unloading, automated warehouse docking, and cross-floor material transfer. In the manufacturing sector, Telescopic Conveyor For Packaging it is suitable for production line material supply, finished product outbound operations, and internal workshop transfers.
Special industry applications include low-temperature operation in cold chain logistics, stainless steel material configurations for cleanrooms, and special designs for explosion-proof environments. Extendable Belt Conveyor In the e-commerce and express delivery industry, it is mainly used for courier sorting center docking, vehicle loading and unloading operations, and rapid deployment of temporary sorting points.
