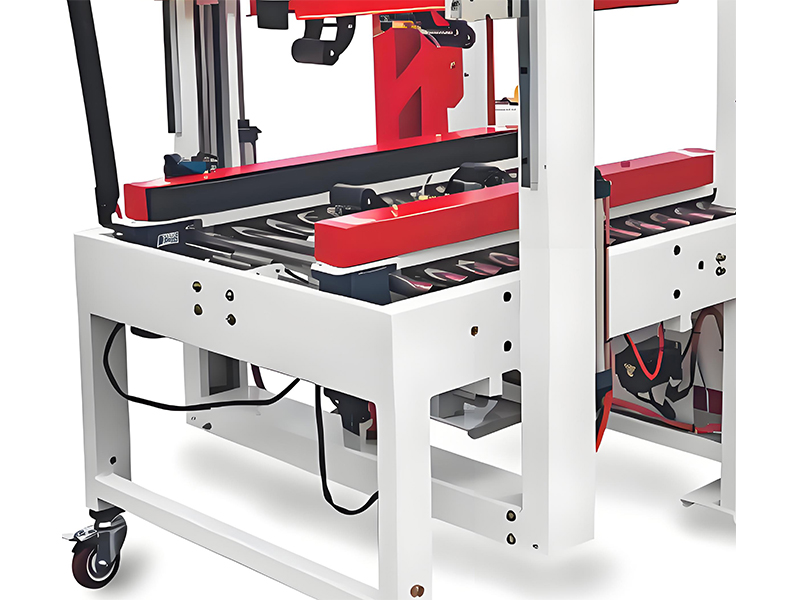

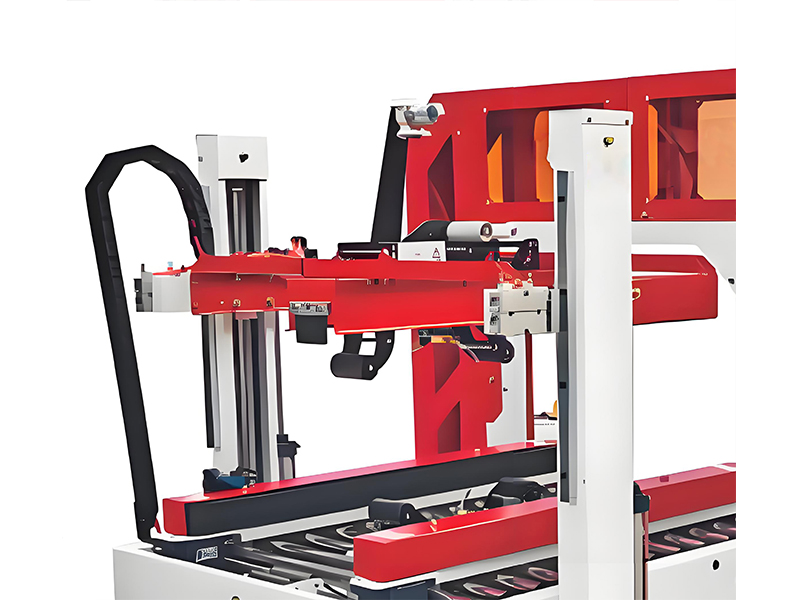

Automatic Cross-Fold Sealer Utilizes advanced servo drive technology to complete the automatic cross-shaped sealing of all four sides of the carton in one go. It is suitable for automated packaging needs in various industries such as food, pharmaceuticals, electronics, and daily chemicals. The Custom Case Sealer is ideal for applications with high requirements for sealing quality and stability.
EOL Carton Sealer Parameters:
Mechanical Dimensions: Length 1390 × Width 1200 × Height 1480 mm
Table Height: 700 mm
Machine Weight: 270 kg (actual weight prevails)
Applicable Range: L: ≥220 mm, W: 120–300 mm, H: 120–300 mm
Sealing Speed: 8–10 boxes/min
Voltage and Power: Single-phase 220V 50Hz 0.64 kW
Air Pressure: 0.5 MPa
Air Consumption: 100 NL/min
Tape Width: 45–55 mm
Tape Diameter: 150 mm
End Of Line Case Sealer Features:
Case Sealer adopts a servo drive system for efficient and stable control.
Achieves 360-degree vertical sealing along the long side and straight-line sealing on the top and bottom of the short side.
The tape application mechanism ensures flat sealing and stable tape-end adhesion.
Case Sealing Machine adapts to the tape sealing requirements of packaging materials such as cartons and foam boxes of different materials.
Achieves one-stop adaptive cross-shaped sealing for cartons within the specified range.
