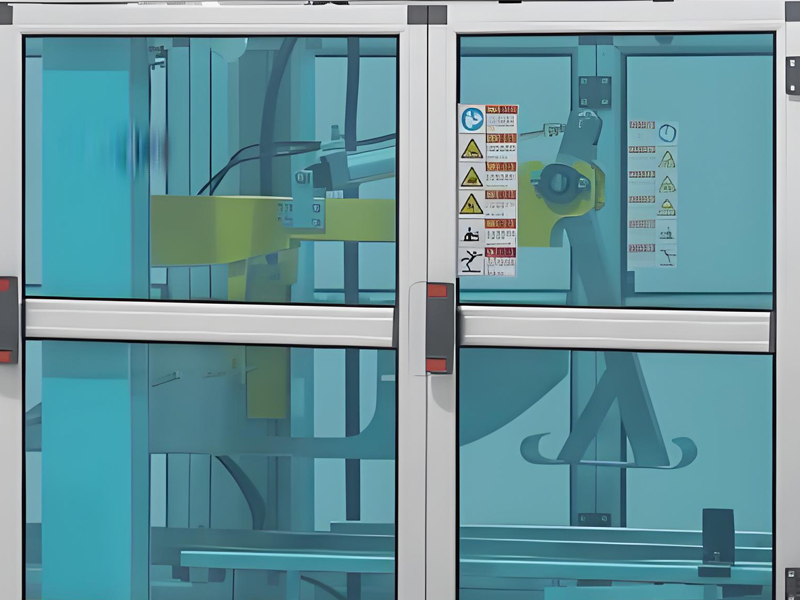

With Guard Automatic Carton Sealer Adopts a single-channel continuous operation mode, capable of achieving fast and stable carton sealing on automated packaging lines. Custom Case Sealer compatible with three sealing processes: kraft paper tape, BOPP tape, and hot melt adhesive, meeting the diverse packaging needs of industries such as e-commerce logistics, food and beverage, and daily chemicals.
Case Sealer Technical Parameters
Power Configuration: AC380V, 50Hz, 0.6kW
Working Air Pressure: 0.6-0.8MPa
Applicable Tape: Kraft paper tape, BOPP tape, or hot melt adhesive
Tape Width: 48-72mm adjustable
Applicable Carton: Length 250-450mm × Width 160-400mm × Height 160-400mm
Sealing Speed: Up to 45 boxes/minute
Equipment Dimensions: 2100mm (L) × 900mm (W) × [Table Height + 1000mm] (H)
Case Sealing Machine Core Advantages
High Production Efficiency
End Of Line Case Sealer adopts a single-channel continuous conveying system, with a sealing speed of up to 45 boxes per minute, significantly improving packaging efficiency. The quick tape change mechanism, combined with the intelligent control system, ensures uninterrupted production processes.
Stable and Reliable Operation Performance
EOL Carton Sealer is equipped with a precise pneumatic control system and industrial-grade actuators, ensuring accurate and stable sealing operations. Overload protection and fault self-diagnosis functions effectively guarantee the reliability of long-term continuous operation.
Intelligent Operation Experience
High-Speed Automatic Carton Sealer features a human-machine interface with intuitive and simple parameter settings. Carton specification adjustments are quick and convenient, supporting one-touch switching between multiple preset process formulas.
