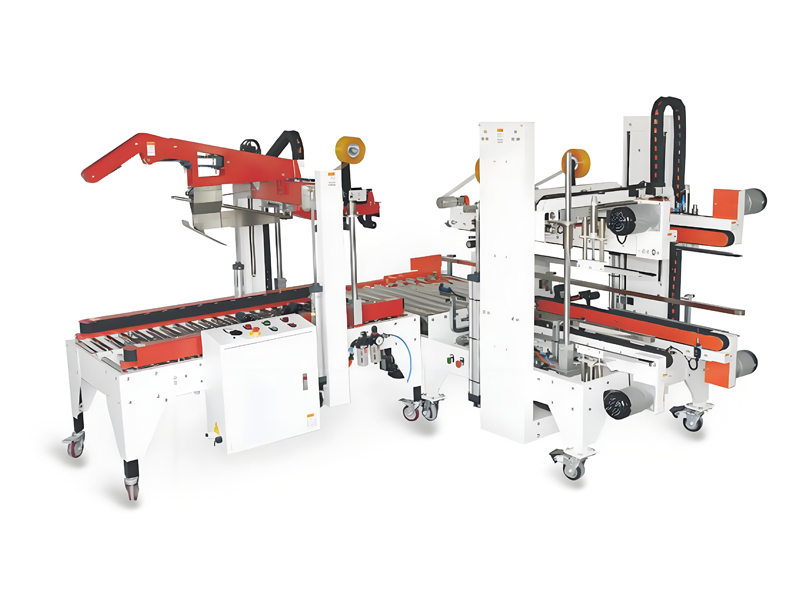

Full Wrap-Around Case Sealer

Get Latest Price

Contact Now

Product Description

The Full Wrap-Around Case Sealer adopts an L-shaped linkage design, enabling functions such as automatic flap folding, multi-angle taping, and full-wrap sealing. With a high degree of automation and strong adaptability, the Case Sealer is widely used in industries such as food, pharmaceuticals, daily chemicals, electronics, and e-commerce logistics, where high requirements exist for packaging appearance and protection. It is particularly suitable for automated continuous operations involving batches of multiple specifications and box types.

Technical Parameters of Automatic Case Sealing Machine

Carton Size Range:

Minimum: L340 × W200 × H180 mm

Maximum: L600 × W500 × H500 mm

Applicable Output: 4–6 boxes/minute

Machine Dimensions (Two-Section Layout):

Section 1: L1700 × W920 × H1450 mm

Section 2: L2110 × W1250 × H1500 mm

Applicable Power Supply: 220V / 380V, 50Hz

Applicable Air Source: 0.6 MPa, Air Consumption: 150 NL/min

Power Consumption: 1.0 KW

Applicable Tape: 48 mm, 60 mm, 72 mm (choose one)

Features of End Of Line Case Sealer

Composite Sealing Process

The automatic flap-folding "I"-type sealer and the four-corner "H"-type sealer are linked, achieving full-wrap sealing and enhancing the overall strength and sealing performance of cartons.

L-Shaped Linkage Layout

The High-Speed Wrap-Around Sealer adopts an L-shaped production line layout, with the standard direction turning left when facing the entrance. If a right turn is required, the corner sealer section needs custom design.

Multi-Specification Adaptability

The EOL Carton Sealer supports handling multiple carton specifications within the same time period, with automatic adjustment of width and height during model changes, eliminating the need for manual intervention.

Ergonomic Optimization

The standard machine table height is 620mm, facilitating operation and maintenance, and aligning with production line ergonomic requirements.

Excellent Taping Performance

The taping mechanism is precisely structured, robust, operates smoothly, has strong durability, and delivers flat, secure sealing results.

Supports Non-Standard Customization

The Custom Case Sealer, in addition to standard configurations, can be custom-developed according to user packaging processes, site conditions, special box types, and other requirements.
