Product Description

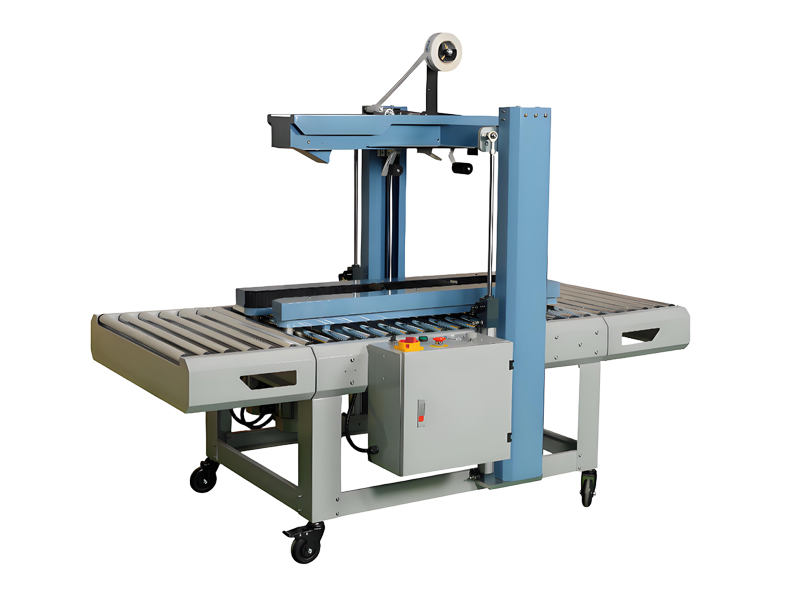

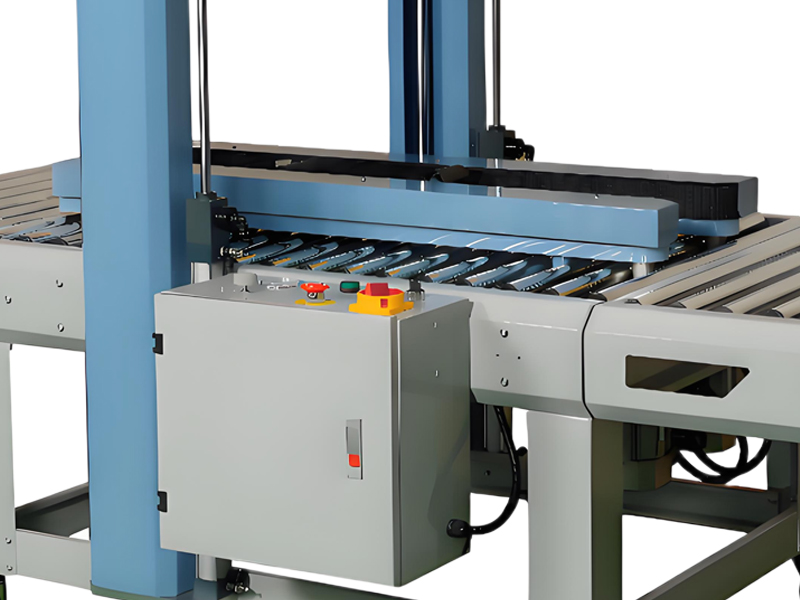

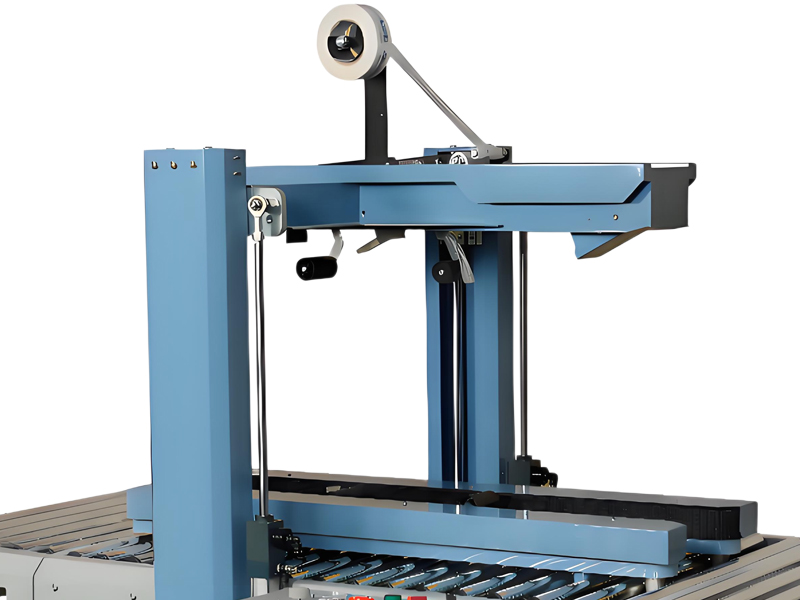

The Dual Side Carton Sealer employs a dual-side synchronous or single-side dominant drive structure, enabling simultaneous tape or heat sealing on both left and right sides of cartons. It is designed for packaging scenarios that demand side reinforcement, overall carton appearance enhancement, or specific logistics specifications. Widely applied in industries such as food, beverages, electronics, daily chemicals, and e-commerce logistics, the Case Sealer is well-suited for standardized side-sealing operations of boxed and cartoned products.
Parameters of Automatic Case Sealing Machine
Power Supply Voltage: AC220V/50HZ
Power: 360W
Conveyor Speed: 20M/MIN
Applicable Tape: 48MM, 60MM, 75MM
Drive Method: Dual-side conveyor belt drive
Applicable Sealing Dimensions: Minimum L150W120H130MM, Maximum LW500H600MM
Overall Dimensions (LWH): 1150*1150*1163MM
Machine Weight: Approximately 240KG
Features of End Of Line Case Sealer
Unique appearance design and reasonable structural performance.
Custom Case Sealer adopts dual-side lower belt drive.
Suitable for handling multiple carton specifications simultaneously.
Width and height are automatically adjusted when changing specifications.
Table height is adjustable, usable as a standalone unit or integrated into a production line.
EOL Carton Sealer supports non-standard customization in addition to standard specifications.
pressure to prevent scratches on printed surfaces.
