Product Description

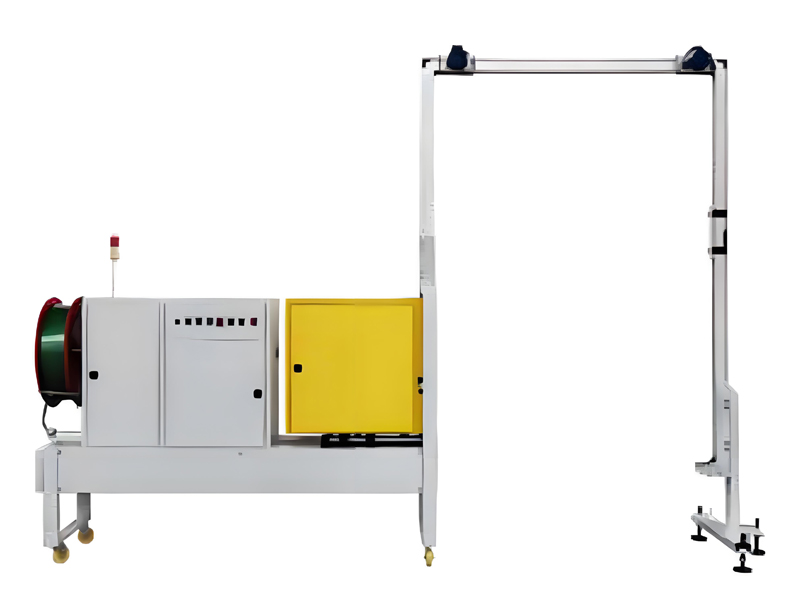

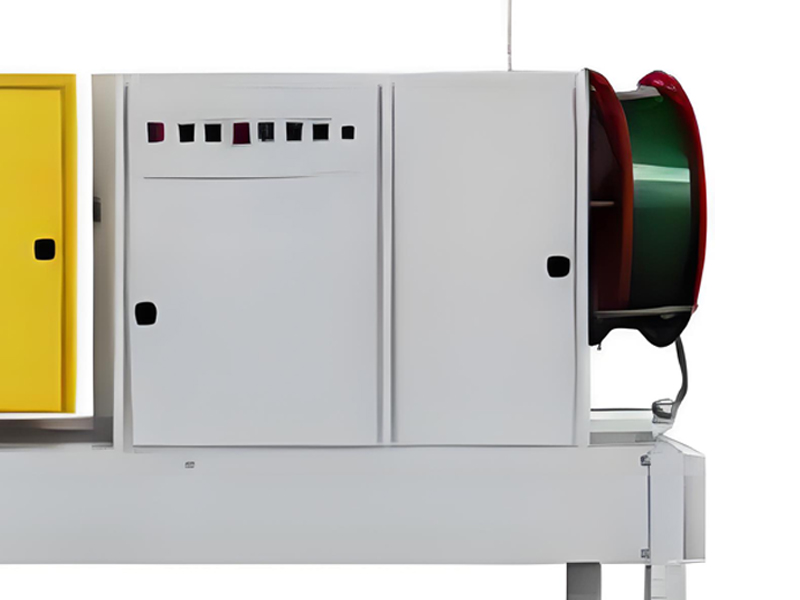

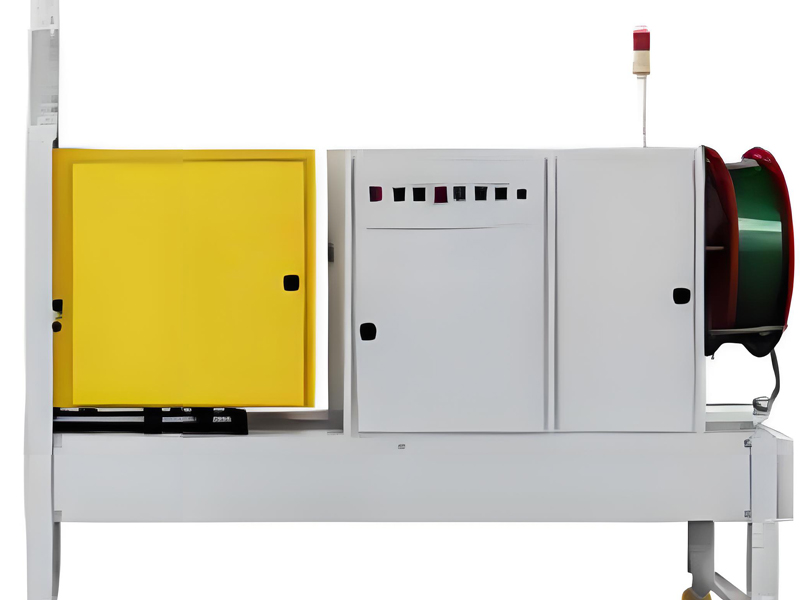

The Automatic Vertical Strapping Machine adopts a sword-type transmission design, suitable for strapping goods of multiple sizes and shapes. The Strapping Machine is efficient, flexible, stable in operation, and reliable in strap feeding, primarily used in high-frequency, high-intensity production lines or logistics processes. The Vertical Strapping Machine is widely applied in industries such as furniture manufacturing, metal processing, paper packaging, and large-scale logistics.
Main Technical Parameters of the Carton Strapping Machine
Power Supply: 380V, 50/60Hz, 1.6kW
Compressed Air Pressure: 0.6–0.8 MPa
Overall Dimensions: 4145 × 845 × 2630 mm
Frame Dimensions: Width 1500 × Height 2000 mm (customizable)
Strapping Speed: ≤15 seconds per strap
Strapping Tape Specifications:
Width: 9–15 mm (±0.1)
Thickness: 0.55–1.0 mm (±0.1)
Tape Reel Specifications (PP/PET Tape Reel):
Width: 160–180 mm
Inner Diameter: 200–210 mm
Outer Diameter: 400–500 mm
Equipment Features
Sword-type strap feeding system: reliable strap feeding, suitable for complex packaging shapes, strong penetration capability, and not prone to jamming;
Fully automatic operation: automatic strap feeding, tightening, sealing, and cutting, with simple operation;
Compact and stable structure: reasonable design, small footprint;
Wide application: Packaging Strapping Machine supports multiple strap widths and thicknesses, compatible with PP straps, PET straps, and other strapping materials;
Customizable frame: EOL Strapping Equipment can be customized according to cargo dimensions;
Energy-efficient and high-performance: End of Line Strapping Machine adopts a combination of low-power motor and pneumatic system, with low energy consumption and fast response.
